Simulation Diagnostics#
scene.trace() returns a SimulationResult that contains both the per-detector results and a complete flux budget for the simulation. Understanding this object is essential for verifying that a simulation is physically correct.
Flux accounting. Every watt launched by a source must end up somewhere:
total_flux_in = total_flux_detected + total_flux_absorbed + total_flux_bulk_absorbed
+ total_flux_escaped + total_flux_lost
total_flux_absorbed is surface absorption (an AbsorbingComponent a ray hit directly); total_flux_bulk_absorbed is Beer-Lambert absorption accumulated while a ray travels through a lossy glass (nonzero extinction coefficient k) – automatic whenever a lens/doublet uses such a material, no configuration needed. The demo lens below uses N-BK7, whose k at 0.55 µm is small but not exactly zero, so total_flux_bulk_absorbed reads a small (<0.1%) but genuine value throughout this
notebook rather than a rounding artefact.
The flux_conservation_error field tells you how well the simulation preserves energy. Values below 1e-4 are typical. The sections below build these checks up by hand; the “Self-diagnosing results” section further down runs the same checks automatically on every trace.
[1]:
import matplotlib.pyplot as plt
import numpy as np
from optiland.coordinate_system import CoordinateSystem
from optiland.nonsequential import (
NSQScene, Spectrum,
CollimatedSourceConfig, PointSourceConfig,
IrradianceDetectorConfig,
LensConfig,
)
spec = Spectrum.monochromatic(0.55)
1. Full SimulationResult Structure#
[2]:
scene = NSQScene()
scene.add_source(
'S', CoordinateSystem(z=-80),
CollimatedSourceConfig(spectrum=spec, total_flux=1.0, aperture_radius=10.0),
)
scene.add_lens(
'L', CoordinateSystem(z=0),
LensConfig(r1=50, r2=-50, thickness=5, material='N-BK7', front_aperture_radius=12.5),
)
# f = 49.1 mm and a 47.4 mm back focal distance put the focus at z = 52.4 mm.
scene.add_detector(
'D', CoordinateSystem(z=52.4),
IrradianceDetectorConfig(width=6, height=6, num_pixels_x=128, num_pixels_y=128),
)
result = scene.trace(num_rays=50_000, seed=42)
# Print every field of SimulationResult
print("=== SimulationResult ===")
print(f" trace_time_sec : {result.trace_time_sec:.3f} s")
print(f" num_rays_total : {result.num_rays_total:,}")
print(f" num_rays_absorbed : {result.num_rays_absorbed:,}")
print(f" num_rays_escaped : {result.num_rays_escaped:,}")
print(f" num_rays_flux_killed : {result.num_rays_flux_killed:,}")
print(f" num_rays_depth_killed : {result.num_rays_depth_killed:,}")
print()
print(f" total_flux_in : {result.total_flux_in:.6f} W")
print(f" total_flux_detected : {result.total_flux_detected:.6f} W")
print(f" total_flux_absorbed : {result.total_flux_absorbed:.6f} W")
print(f" total_flux_bulk_absorbed: {result.total_flux_bulk_absorbed:.6f} W")
print(f" total_flux_escaped : {result.total_flux_escaped:.6f} W")
print(f" total_flux_lost : {result.total_flux_lost:.6f} W")
print(f" flux_conservation_error: {result.flux_conservation_error:.2e}")
print()
print(" Detectors :", list(result.detectors.keys()))
=== SimulationResult ===
trace_time_sec : 0.217 s
num_rays_total : 50,000
num_rays_absorbed : 0
num_rays_escaped : 4,145
num_rays_flux_killed : 0
num_rays_depth_killed : 0
total_flux_in : 1.000000 W
total_flux_detected : 0.916491 W
total_flux_absorbed : 0.000000 W
total_flux_bulk_absorbed: 0.000672 W
total_flux_escaped : 0.082837 W
total_flux_lost : 0.000000 W
flux_conservation_error: 4.16e-17
Detectors : ['D']

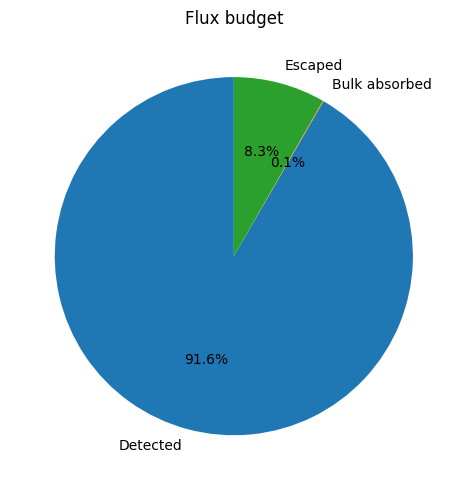

2. Flux Budget Pie Chart#
[3]:
labels = ['Detected', 'Absorbed', 'Bulk absorbed', 'Escaped', 'Lost']
values = [
result.total_flux_detected,
result.total_flux_absorbed,
result.total_flux_bulk_absorbed,
result.total_flux_escaped,
result.total_flux_lost,
]
# Filter out zero categories
labels_filt = [l for l, v in zip(labels, values) if v > 1e-9]
values_filt = [v for v in values if v > 1e-9]
fig, ax = plt.subplots(figsize=(5, 5))
ax.pie(values_filt, labels=labels_filt, autopct='%1.1f%%', startangle=90)
ax.set_title('Flux budget')
plt.tight_layout()
plt.show()
plt.close(fig)

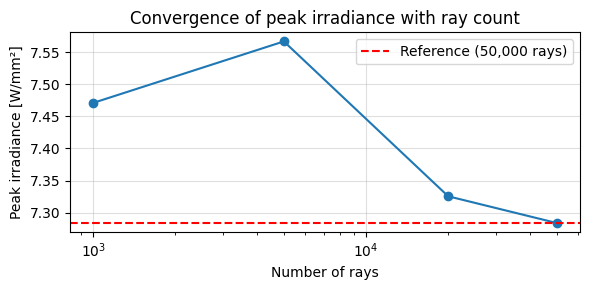

3. Effect of Ray Count on Accuracy#
More rays give a smoother irradiance map and a more reliable flux estimate. Here we trace the same scene with different ray counts and compare peak irradiance:
[4]:
def build_scene():
s = NSQScene()
s.add_source('S', CoordinateSystem(z=-80),
CollimatedSourceConfig(spectrum=spec, total_flux=1.0, aperture_radius=10.0))
s.add_lens('L', CoordinateSystem(z=0),
LensConfig(r1=50, r2=-50, thickness=5, material='N-BK7',
front_aperture_radius=12.5))
s.add_detector('D', CoordinateSystem(z=52.4),
IrradianceDetectorConfig(width=6, height=6,
num_pixels_x=64, num_pixels_y=64))
return s
ray_counts = [1_000, 5_000, 20_000, 50_000]
peaks = []
for n in ray_counts:
r = build_scene().trace(num_rays=n, seed=42)
peaks.append(r.detectors['D'].irradiance.max())
fig, ax = plt.subplots(figsize=(6, 3))
ax.semilogx(ray_counts, peaks, 'o-')
ax.axhline(peaks[-1], color='r', linestyle='--', label=f'Reference ({ray_counts[-1]:,} rays)')
ax.set_xlabel('Number of rays')
ax.set_ylabel('Peak irradiance [W/mm²]')
ax.set_title('Convergence of peak irradiance with ray count')
ax.legend()
ax.grid(True, alpha=0.4)
plt.tight_layout()
plt.show()
plt.close(fig)
4. Controlling Ray Termination#
Two parameters decide when a ray stops being traced:
``max_depth`` (default 16): a ray is killed outright after this many surface hits. Every interaction counts, so a ray passing through a singlet already uses two (front face, back face) before it reaches a detector. This is the one loss mechanism that is an inherent, reported bias – raise it if deep paths (internal reflections, ghosts) matter to the result; lower it to speed up runs where they do not.
``min_flux_fraction`` (default 1e-6): below this fraction of a ray’s initial flux, the ray is Russian-rouletted, not deterministically killed – with probability p it is terminated, and survivors have their flux boosted by
1/(1-p)to compensate. This is unbiased in expectation (unlike a hard cutoff, which would systematically lose flux), so raising it trades variance for speed rather than introducing bias outright.
Flux removed by either mechanism is reported as total_flux_lost, and it is part of the ledger, so flux_conservation_error stays near zero even when rays are being killed. SimulationResult.diagnostics (see below) separates the two into depth_truncated_flux_fraction and rr_killed_flux_fraction so a large total_flux_lost can be traced back to whichever mechanism caused it.
[5]:
# max_depth must be large enough for light to reach the detector at all:
# a singlet needs two hits (front and back face) before the ray gets there.
for max_b in [1, 2, 5, 20]:
r = build_scene().trace(num_rays=30_000, seed=42,
max_depth=max_b, min_flux_fraction=1e-8)
irr = r.detectors['D']
print(f"max_depth={max_b:>3}: detected {irr.total_flux:.5f} W "
f"({irr.num_rays_hit:>6,} rays) "
f"lost={r.total_flux_lost:.5f} W "
f"depth_killed={r.num_rays_depth_killed:>6,} "
f"err={r.flux_conservation_error:.1e}")
max_depth= 1: detected 0.00000 W ( 0 rays) lost=1.00000 W depth_killed=30,000 err=2.2e-16
max_depth= 2: detected 0.00000 W ( 0 rays) lost=0.95780 W depth_killed=28,753 err=0.0e+00
max_depth= 5: detected 0.91656 W (27,515 rays) lost=0.00093 W depth_killed= 28 err=2.8e-16
max_depth= 20: detected 0.91656 W (27,515 rays) lost=0.00000 W depth_killed= 0 err=2.8e-16
5. Reproducibility with seed#
Setting seed fixes the NumPy random number generator. Two traces with the same seed produce identical results. Omitting seed gives a different result each time (useful for estimating Monte Carlo variance).
[6]:
r1 = build_scene().trace(num_rays=10_000, seed=7)
r2 = build_scene().trace(num_rays=10_000, seed=7) # same seed
r3 = build_scene().trace(num_rays=10_000, seed=99) # different seed
f1 = r1.detectors['D'].total_flux
f2 = r2.detectors['D'].total_flux
f3 = r3.detectors['D'].total_flux
print(f"Same seed (7, 7) : flux1 = {f1:.6f} W, flux2 = {f2:.6f} W → identical: {np.isclose(f1, f2)}")
print(f"Diff seed (7, 99) : flux1 = {f1:.6f} W, flux3 = {f3:.6f} W → same: {np.isclose(f1, f3)}")
Same seed (7, 7) : flux1 = 0.919287 W, flux2 = 0.919287 W → identical: True
Diff seed (7, 99) : flux1 = 0.919287 W, flux3 = 0.913693 W → same: False
6. Batch Size#
batch_size sets how many rays are traced in one chunk. It is a performance control, not a physical parameter: the result must not depend on it, beyond Monte Carlo noise from consuming the random stream differently.
The default of 16,384 rays per batch is tuned so the working set stays in CPU cache, which is where the trace loop is fastest. Raising it costs speed without saving memory, and raising it beyond the ray count has no effect at all. Notebook 10 measures the speed curve directly.
[7]:
fluxes = {}
for bs in (1_000, 5_000, 20_000, 1_000_000):
r = build_scene().trace(num_rays=20_000, seed=42, batch_size=bs)
fluxes[bs] = r.detectors['D'].total_flux
print(f"batch_size={bs:>9,}: flux = {fluxes[bs]:.6f} W "
f"(conservation error {r.flux_conservation_error:.1e})")
spread = max(fluxes.values()) - min(fluxes.values())
print(f"\nSpread across batch sizes: {spread:.2e} W "
f"({spread / np.mean(list(fluxes.values())) * 100:.2f}% - Monte Carlo noise only)")
batch_size= 1,000: flux = 0.915442 W (conservation error 2.8e-16)
batch_size= 5,000: flux = 0.915442 W (conservation error 2.6e-16)
batch_size= 20,000: flux = 0.915442 W (conservation error 4.9e-16)
batch_size=1,000,000: flux = 0.915442 W (conservation error 4.9e-16)
Spread across batch sizes: 2.22e-16 W (0.00% - Monte Carlo noise only)
7. Self-Diagnosing Results: result.report()#
Sections 2-6 above hand-built several checks: does the flux ledger balance, how much is max_depth/min_flux_fraction losing, does the result depend on batch_size. SimulationResult.diagnostics (a Diagnostics object) computes the same kind of checks automatically, at negligible extra cost (a few running counters plus one pass over the detectors), and turns them into an explicit, threshold-based warning list rather than numbers you have to know to go looking for:
``depth_truncated_flux_fraction`` – fraction of launched flux killed by the hard
max_depthcutoff. The only loss mechanism here that is an inherent, reported bias; a nonzero value is a direct signal to raisemax_depthif those deep paths matter.``rr_killed_flux_fraction`` – fraction killed by Russian roulette (section 4). Unbiased in expectation, so a nonzero value means the per-trace estimator is noisy, not necessarily wrong.
``flux_conservation_error`` – the same field printed in section 1, copied here for convenience.
``unreached_geometry`` – names of scene components no ray ever hit over the whole trace: usually a misplaced or mis-oriented surface, occasionally a deliberately unused spare aperture.
``detectors`` – a
DetectorDiagnosticper detector:mean_hits_per_pixel,undersampled(shot noise dominates the map below ~10 hits/pixel), andrays_needed_for_5pct(an estimate of the ray count that would bring an undersampled detector to ~5% relative Poisson error).``medium_stack_underflows``, ``split_budget_saturated`` – always 0 /
Falsefor scenes like the ones in this notebook; reserved for a future runtime medium-nesting stack and for scenes using bounded ghost-path splitting, respectively.
result.report() renders all of this as text with a trailing warning section; repr(result) shows just a warning count, so a problem is visible even from a bare REPL echo. Re-running the section 1 scene below is a realistic example, not a contrived one – and it already has something to say.
[8]:
# Reuse the well-behaved scene from section 1.
print(result.report())
print()
print(repr(result))
NSQ trace diagnostics:
depth_truncated_flux_fraction: 0.0000%
rr_killed_flux_fraction: 0.0000%
flux_conservation_error: 0.0000%
unreached_geometry: ['L.edge']
medium_stack_underflows: 0
split_budget_saturated: False
detectors:
D: 45855 hits, 2.80 mean hits/pixel [undersampled]
Warnings:
- 1 component(s) were never hit by any ray: L.edge. Check placement/orientation, or ignore if intentionally unused.
- Detector 'D' is undersampled: 2.8 mean hits/pixel (< 10), shot noise dominates the map; ~7,146,003 rays would bring it to ~5% relative error.
SimulationResult(num_rays_total=50000, detectors=['D'], total_flux_in=1, total_flux_detected=0.916491, flux_conservation_error=4.163e-17, 2 diagnostic warning(s))
Two warnings, and both are informative rather than alarming:
L.edge(the lens’s cylindrical barrel) is unreached – expected here, since a 10 mm-radius collimated beam never gets near the 12.5 mm-radius barrel of a lens it enters straight down the axis. This is the “ignore if intentionally unused” case the docstring calls out.Detector
Dis undersampled: 128x128 = 16,384 pixels but only ~46,000 hits, somean_hits_per_pixelis well under the 10-hit shot-noise floor. This is actionable – it is the same convergence question section 3 asked by hand, now with a concrete ray-count estimate (rays_needed_for_5pct) attached instead of a squint-and-guess plot.
Tripping the warnings on purpose#
To see a more serious case, build a scene with two deliberate problems: an order of magnitude too few rays for the detector (severe undersampling), and a spare mirror parked well outside the 10 mm-radius collimated beam so no ray can ever reach it (unreached geometry that is not an innocuous barrel).
[9]:
from optiland.nonsequential import MirrorConfig
def build_scene_with_spare_mirror():
s = build_scene()
# Well clear of the 10 mm-radius beam and the 12.5 mm-aperture lens: no
# ray can reach it, so diagnostics.unreached_geometry should flag it.
s.add_mirror(
'spare_M', CoordinateSystem(x=60.0, z=0),
MirrorConfig(radius=-100.0, aperture_radius=10.0, reflectance=0.9),
)
return s
# 300 rays into a 64x64 = 4,096-pixel detector -- far below the ~10
# hits/pixel needed before shot noise stops dominating the map.
result_noisy = build_scene_with_spare_mirror().trace(num_rays=300, seed=42)
print(result_noisy.report())
NSQ trace diagnostics:
depth_truncated_flux_fraction: 0.0000%
rr_killed_flux_fraction: 0.0000%
flux_conservation_error: 0.0000%
unreached_geometry: ['L.edge', 'spare_M.surface']
medium_stack_underflows: 0
split_budget_saturated: False
detectors:
D: 278 hits, 0.07 mean hits/pixel [undersampled]
Warnings:
- 2 component(s) were never hit by any ray: L.edge, spare_M.surface. Check placement/orientation, or ignore if intentionally unused.
- Detector 'D' is undersampled: 0.1 mean hits/pixel (< 10), shot noise dominates the map; ~1,768,057 rays would bring it to ~5% relative error.
Depth truncation is easy to trigger too: rerun the max_depth=1 case from section 4, where every ray was killed before reaching the lens’s back face. diagnostics.depth_truncated_flux_fraction should read essentially 100%, and the warning list should say so in plain language.
[10]:
result_truncated = build_scene().trace(num_rays=30_000, seed=42, max_depth=1)
print(f"depth_truncated_flux_fraction: "
f"{result_truncated.diagnostics.depth_truncated_flux_fraction:.2%}")
print()
for w in result_truncated.diagnostics.warnings():
print(f"- {w}")
depth_truncated_flux_fraction: 100.00%
- 100.00% of launched flux was truncated by max_depth -- results are incomplete for paths deeper than max_depth; raise it if those paths matter.
- 2 component(s) were never hit by any ray: L.back, L.edge. Check placement/orientation, or ignore if intentionally unused.
- Detector 'D' is undersampled: 0.0 mean hits/pixel (< 10), shot noise dominates the map.
8. Putting It Together#
A compact visual summary of the three checks worth running on any new scene: does the flux ledger balance, has the result converged in ray count, and is the beam where you expect it? result.report() above answers the first two numerically already; this is the same information laid out for a quick visual scan.
[11]:
result_final = build_scene().trace(num_rays=50_000, seed=42)
irr_final = result_final.detectors['D']
fig, axes = plt.subplots(1, 3, figsize=(14, 4))
# --- flux budget -----------------------------------------------------------
channels = {
'Detected': result_final.total_flux_detected,
'Absorbed': result_final.total_flux_absorbed,
'Bulk abs.': result_final.total_flux_bulk_absorbed,
'Escaped': result_final.total_flux_escaped,
'Lost': result_final.total_flux_lost,
}
present = {k: v for k, v in channels.items() if v > 1e-9}
ax = axes[0]
ax.bar(present.keys(), present.values(), color=['tab:green', 'tab:orange',
'tab:purple', 'tab:blue',
'tab:red'][:len(present)])
ax.set_ylabel('Flux [W]')
ax.set_title(f'Flux budget (error {result_final.flux_conservation_error:.1e})')
ax.grid(True, axis='y', alpha=0.35)
# --- convergence -----------------------------------------------------------
ax = axes[1]
ax.semilogx(ray_counts, peaks, 'o-')
ax.axhline(peaks[-1], color='r', ls='--', label=f'{ray_counts[-1]:,} rays')
ax.set_xlabel('Number of rays')
ax.set_ylabel('Peak irradiance [W/mm$^2$]')
ax.set_title('Convergence with ray count')
ax.legend()
ax.grid(True, alpha=0.35)
# --- the beam itself -------------------------------------------------------
ax = axes[2]
im = ax.imshow(irr_final.irradiance, origin='lower', cmap='hot',
extent=[irr_final.x_coords[0], irr_final.x_coords[-1],
irr_final.y_coords[0], irr_final.y_coords[-1]])
plt.colorbar(im, ax=ax, label='W/mm$^2$')
ax.set_xlabel('x [mm]')
ax.set_ylabel('y [mm]')
ax.set_title('Irradiance at the detector')
plt.tight_layout()
plt.show()
Summary#
SimulationResulttracks every flux channel: detected, absorbed, bulk-absorbed, escaped, lostflux_conservation_errorvalidates the ledger and should sit near machine precisionMore rays lower the Monte Carlo noise; watch a key metric converge before trusting it
max_depthmust exceed the number of surfaces a ray has to cross and is the one biased loss mechanism;min_flux_fractionsets an unbiased Russian-roulette threshold, not a hard cutoffUse
seedfor reproducible runs; omit it to sample Monte Carlo variancebatch_sizeaffects speed only and must not change the answerresult.diagnostics/result.report()automate exactly these checks – depth truncation, roulette loss, flux conservation, unreached geometry, and per-detector undersampling – with a threshold-based warning list. Read the report before trusting a trace’s numbers, especially for scenes more complex than this notebook’s single lens
