Detectors and Results

The NSQ engine provides four detector types, each capturing a different aspect of the radiation reaching a surface:

Detector	Result class	Records
IrradianceDetector	IrradianceMap	2D spatial flux map
FarFieldDetector	FarFieldPattern	Angular (θ, φ) intensity distribution
SpectralDetector	SpectralResult	Per-wavelength irradiance map
RayDatabaseDetector	RayDatabase	Full phase-space record (x, y, z, L, M, N, flux, λ)

Multiple detectors can be active simultaneously in the same scene. Each is accumulated independently during the trace.

import matplotlib.pyplot as plt
import numpy as np

from optiland.coordinate_system import CoordinateSystem
from optiland.nonsequential import (
    NSQScene, Spectrum,
    PointSourceConfig, CollimatedSourceConfig,
    IrradianceDetectorConfig, FarFieldDetectorConfig,
    SpectralDetectorConfig, RayDatabaseConfig,
    LensConfig,
)

spec_green  = Spectrum.monochromatic(0.55)
spec_rgb    = Spectrum(
    wavelengths=np.array([0.45, 0.55, 0.65]),
    weights=np.array([1.0, 1.5, 1.0]),
)

# The demo singlet used throughout this notebook: biconvex N-BK7, f = 49.1 mm.
# Its back focal distance from the rear vertex is 47.4 mm, so with the front
# vertex at z = 0 and 5 mm of centre thickness the paraxial focus sits at
# z = 52.4 mm. Every detector below goes there unless a cell is deliberately
# showing the beam away from focus.
DEMO_LENS = LensConfig(r1=50, r2=-50, thickness=5, material='N-BK7',
                       front_aperture_radius=12.5)
FOCUS_Z = 52.4

1. IrradianceDetector

The most common detector. Records total flux deposited in each pixel of a rectangular grid. The result IrradianceMap.irradiance is in W/mm².

Use IrradianceDetectorConfig(width, height, num_pixels_x, num_pixels_y) to configure it.

scene = NSQScene()
scene.add_source(
    'S', CoordinateSystem(z=-80),
    CollimatedSourceConfig(spectrum=spec_green, total_flux=1.0, aperture_radius=10.0),
)
scene.add_lens('L', CoordinateSystem(z=0), DEMO_LENS)
scene.add_detector(
    'D_irr', CoordinateSystem(z=FOCUS_Z),
    IrradianceDetectorConfig(width=4, height=4, num_pixels_x=128, num_pixels_y=128),
)

result = scene.trace(num_rays=200_000, seed=42)
irr_map = result.detectors['D_irr']

print(f"IrradianceMap shape: {irr_map.irradiance.shape}")
print(f"Peak irradiance    : {irr_map.irradiance.max():.3f} W/mm\u00b2")
print(f"Total detected flux: {irr_map.total_flux:.4f} W of {result.total_flux_in:.1f} W launched")
print(f"Rays on detector   : {irr_map.num_rays_hit:,}")

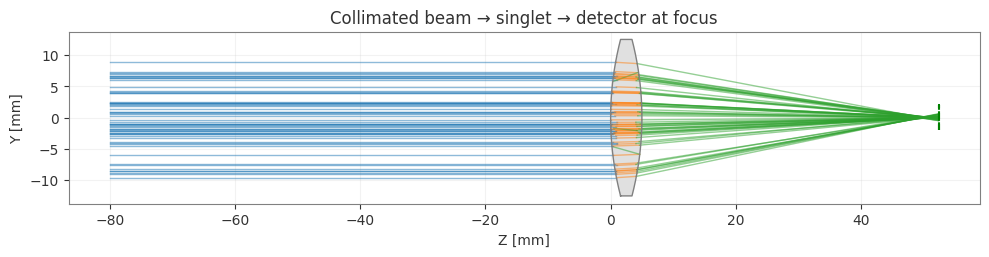

# The scene that produced it. Rays are coloured by how many surfaces they have
# already crossed, so the incoming beam, the two glass legs and the converging
# cone are each a different colour.
scene.view(num_rays=60, color_by='bounce',
           title='Collimated beam \u2192 singlet \u2192 detector at focus')
plt.show()

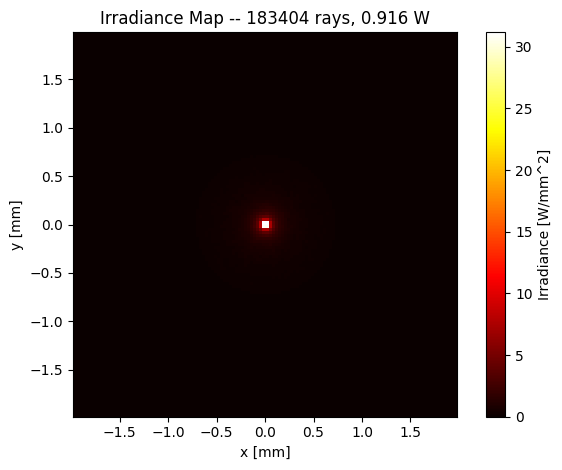

fig = irr_map.plot(cmap='hot')
plt.tight_layout()
plt.show()
plt.close(fig)

IrradianceMap shape: (128, 128)
Peak irradiance    : 31.167 W/mm²
Total detected flux: 0.9164 W of 1.0 W launched
Rays on detector   : 183,404

Splatting modes

A ray rarely lands exactly on a pixel centre, so the detector has to decide how to distribute its flux among neighbouring pixels – that choice is the splat field of IrradianceDetectorConfig (and SpectralDetectorConfig):

• splat="bilinear" (default) – spreads flux across the four nearest pixels, weighted by distance. Differentiable with respect to both landing position and flux.

• splat="hard" – nearest-pixel binning, no spreading. Not differentiable in landing position; this is what the fast NumPy forward path uses internally.

• splat="gaussian" – a true Gaussian kernel of width splat_sigma pixels, truncated and renormalised so no energy is lost. Differentiable, and gives the smoothest map of the three at a given ray count, at the cost of blurring fine structure below splat_sigma pixels.

The difference matters most when rays are scarce: at high ray count all three converge to the same map, but at low count hard binning is visibly grainy where bilinear/gaussian are not.

def spot_with_splat(splat, splat_sigma=0.8, n_rays=4_000):
    """Trace a small, ray-starved spot with a given splatting mode."""
    s = NSQScene()
    s.add_source(
        'S', CoordinateSystem(z=-80),
        CollimatedSourceConfig(spectrum=spec_green, total_flux=1.0, aperture_radius=10.0),
    )
    s.add_lens('L', CoordinateSystem(z=0), DEMO_LENS)
    s.add_detector(
        'D', CoordinateSystem(z=FOCUS_Z),
        IrradianceDetectorConfig(width=2, height=2, num_pixels_x=64, num_pixels_y=64,
                                 splat=splat, splat_sigma=splat_sigma),
    )
    return s.trace(num_rays=n_rays, seed=42).detectors['D']


# Deliberately few rays (4,000, not the 200,000 used above) so the binning
# choice is visible: with plenty of rays all three modes converge.
modes = ['hard', 'bilinear', 'gaussian']
maps_splat = [spot_with_splat(m) for m in modes]
vmax_splat = max(m.irradiance.max() for m in maps_splat)

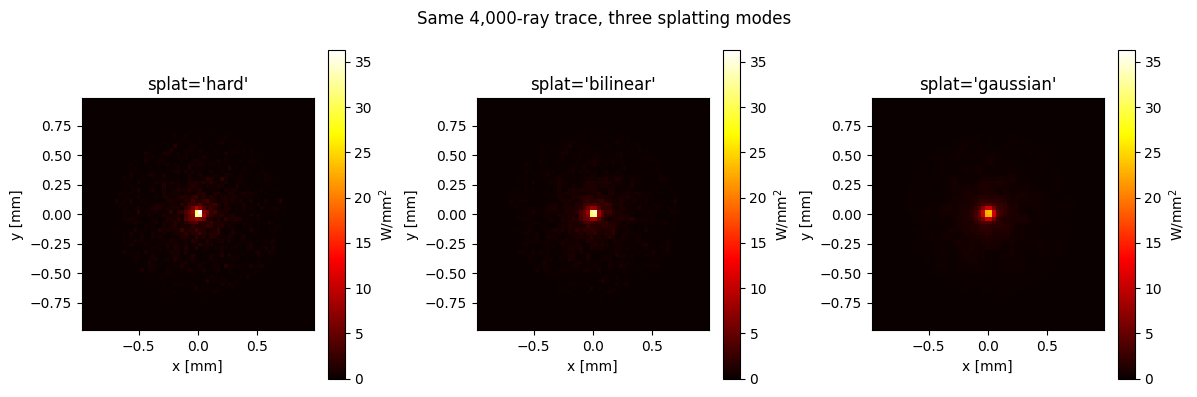

fig, axes = plt.subplots(1, 3, figsize=(12, 4))
for ax, mode, irr in zip(axes, modes, maps_splat):
    im = ax.imshow(irr.irradiance, origin='lower', cmap='hot', aspect='equal',
                   extent=[irr.x_coords[0], irr.x_coords[-1],
                           irr.y_coords[0], irr.y_coords[-1]],
                   vmin=0, vmax=vmax_splat)
    plt.colorbar(im, ax=ax, label='W/mm$^2$')
    ax.set_title(f"splat='{mode}'")
    ax.set_xlabel('x [mm]'); ax.set_ylabel('y [mm]')
plt.suptitle('Same 4,000-ray trace, three splatting modes', fontsize=12)
plt.tight_layout()
plt.show()

2. FarFieldDetector

Records the angular distribution of radiation. Instead of spatial position, it bins each ray by its direction (θ, φ) at the detector surface.

The result FarFieldPattern.intensity is in W/sr and has shape (num_bins_theta, num_bins_phi). Note that intensity is per unit solid angle, so summing it does not give a flux; use FarFieldPattern.total_flux (in W) for the radiometric total.

The detector is placed at a finite location but uses a very large aperture (1 km radius by default) so it captures essentially all forward-going rays.

scene_ff = NSQScene()
# Isotropic hemisphere point source
scene_ff.add_source(
    'S', CoordinateSystem(z=0),
    PointSourceConfig(spectrum=spec_green, total_flux=1.0, half_angle_deg=90),
)
# FarFieldDetector captures the hemisphere at z > 0
scene_ff.add_detector(
    'FF', CoordinateSystem(z=100),
    FarFieldDetectorConfig(num_theta=45, num_phi=180),
)

result_ff = scene_ff.trace(num_rays=50_000, seed=42)
ff = result_ff.detectors['FF']

print(f"FarFieldPattern shape: {ff.intensity.shape}  (theta x phi)")
print(f"Total flux recorded  : {ff.total_flux:.4f} W")
print(f"Peak intensity       : {ff.intensity.max():.2f} W/sr")

# Sum over phi to get radial profile
intensity_radial = ff.intensity.sum(axis=1)

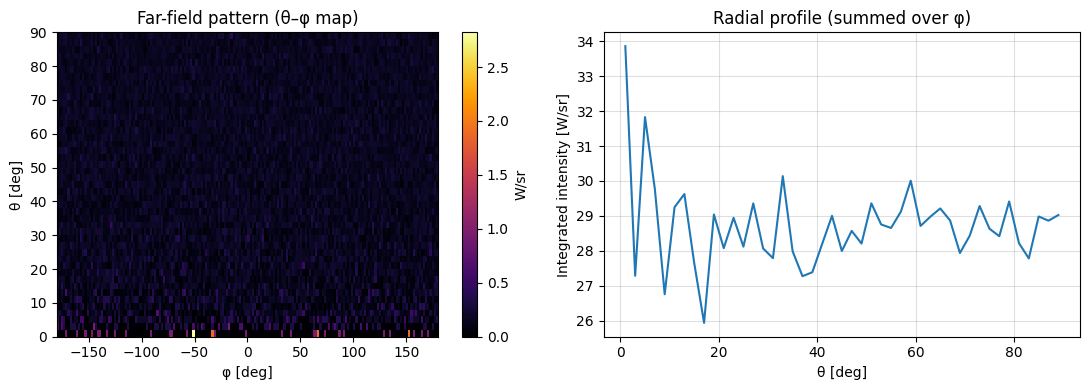

fig, axes = plt.subplots(1, 2, figsize=(11, 4))

im = axes[0].pcolormesh(ff.phi, ff.theta, ff.intensity, cmap='inferno', shading='auto')
plt.colorbar(im, ax=axes[0], label='W/sr')
axes[0].set_xlabel('φ [deg]'); axes[0].set_ylabel('θ [deg]')
axes[0].set_title('Far-field pattern (θ–φ map)')

axes[1].plot(ff.theta, intensity_radial)
axes[1].set_xlabel('θ [deg]'); axes[1].set_ylabel('Integrated intensity [W/sr]')
axes[1].set_title('Radial profile (summed over φ)')
axes[1].grid(True, alpha=0.4)

plt.tight_layout()
plt.show()
plt.close(fig)

FarFieldPattern shape: (45, 180)  (theta x phi)
Total flux recorded  : 0.9999 W
Peak intensity       : 2.82 W/sr

3. SpectralDetector

Extends the irradiance detector with a third wavelength dimension. The result SpectralResult.irradiance has shape (ny, nx, n_lambda) in W/mm², holding the flux that landed in each wavelength bin (it is binned, not divided by bin width, so summing over the last axis recovers the broadband irradiance).

Add a SpectralDetector via SpectralDetectorConfig. Its binning range (wl_min, wl_max) is given in micrometres, the same unit Spectrum uses and the same unit as every other wavelength in Optiland — the visible band is wl_min=0.4, wl_max=0.7.

This is where a spectral detector earns its keep: N-BK7 is dispersive, so the three source lines do not share a focus. A higher index means a shorter focal length, so blue focuses nearest the lens and red furthest from it; over 0.45–0.65 µm the index falls by about 0.011, spreading the focus over roughly 1 mm.

The detector sits at z = 52.4, the paraxial 0.55 µm focus. Spherical aberration in this f/2.45 singlet pulls the real green focus in to about z = 50, so at this plane it is red that happens to be nearest its own focus and blue that is furthest past it. That ordering is not obvious from the maps, which is the point of measuring rather than eyeballing — the per-bin peak irradiance printed below says it outright.

scene_sp = NSQScene()
scene_sp.add_source(
    'S', CoordinateSystem(z=-80),
    CollimatedSourceConfig(spectrum=spec_rgb, total_flux=1.0, aperture_radius=10.0),
)
scene_sp.add_lens('L', CoordinateSystem(z=0), DEMO_LENS)
scene_sp.add_detector(
    'SD', CoordinateSystem(z=FOCUS_Z),
    SpectralDetectorConfig(width=4, height=4, num_pixels_x=64, num_pixels_y=64,
                           wl_min=0.4, wl_max=0.7, num_bins=30),
)

result_sp = scene_sp.trace(num_rays=200_000, seed=42)
sp_result = result_sp.detectors['SD']

pixel_area = (4 / 64) ** 2
flux_per_bin = sp_result.irradiance.sum(axis=(0, 1)) * pixel_area
occupied = np.flatnonzero(flux_per_bin)

print(f"SpectralResult irradiance shape: {sp_result.irradiance.shape}  (ny, nx, nlambda)")
print(f"Occupied bins: {occupied.tolist()}")
for i in occupied:
    print(f"  bin {i:2d}  centre {sp_result.wavelengths[i]:.3f} \u00b5m  "
          f"{flux_per_bin[i]:.4f} W")
print(f"Sum over bins: {flux_per_bin.sum():.4f} W  "
      f"(= total_flux {sp_result.total_flux:.4f} W)")
print("\nPeak irradiance per bin. Normalising by the flux in each bin removes"
      "\nthe 1 : 1.5 : 1 source weighting, leaving only how tightly each line"
      "\nis focused at this one plane:")
for i in occupied:
    peak = sp_result.irradiance[:, :, i].max()
    print(f"  {sp_result.wavelengths[i]:.3f} \u00b5m: {peak:8.2f} W/mm\u00b2 "
          f"({peak / flux_per_bin[i]:.1f} per watt in the bin)")

# Irradiance map in each occupied bin, on a shared colour scale so the
# wavelengths are directly comparable.
maps = [sp_result.irradiance[:, :, i] for i in occupied]
vmax = max(m.max() for m in maps)
extent = [sp_result.x_coords[0], sp_result.x_coords[-1],
          sp_result.y_coords[0], sp_result.y_coords[-1]]

fig, axes = plt.subplots(1, 4, figsize=(16, 4))
for ax, i, E_wl in zip(axes, occupied, maps):
    im = ax.imshow(E_wl, origin='lower', cmap='plasma', aspect='equal',
                   extent=extent, vmin=0, vmax=vmax)
    plt.colorbar(im, ax=ax, label='W/mm$^2$')
    ax.set_title(f'$\\lambda$ = {sp_result.wavelengths[i]:.3f} \u00b5m')
    ax.set_xlabel('x [mm]'); ax.set_ylabel('y [mm]')

axes[3].bar(sp_result.wavelengths, flux_per_bin, width=0.008)
axes[3].set_xlabel('$\\lambda$ [\u00b5m]'); axes[3].set_ylabel('Flux in bin [W]')
axes[3].set_title('Detected spectrum (weights 1 : 1.5 : 1)')
axes[3].grid(True, alpha=0.3)

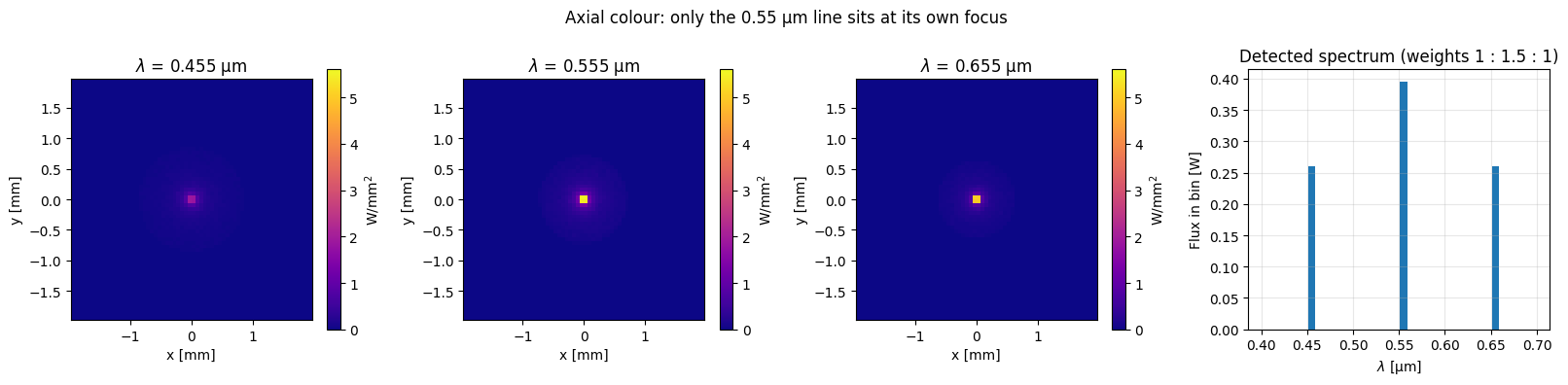

plt.suptitle('Axial colour: only the 0.55 \u00b5m line sits at its own focus',
             fontsize=12)
plt.tight_layout()
plt.show()
plt.close(fig)

SpectralResult irradiance shape: (64, 64, 30)  (ny, nx, nlambda)
Occupied bins: [5, 15, 25]
  bin  5  centre 0.455 µm  0.2609 W
  bin 15  centre 0.555 µm  0.3952 W
  bin 25  centre 0.655 µm  0.2599 W
Sum over bins: 0.9160 W  (= total_flux 0.9160 W)

Peak irradiance per bin. Normalising by the flux in each bin removes
the 1 : 1.5 : 1 source weighting, leaving only how tightly each line
is focused at this one plane:
  0.455 µm:     1.90 W/mm² (7.3 per watt in the bin)
  0.555 µm:     5.61 W/mm² (14.2 per watt in the bin)
  0.655 µm:     5.09 W/mm² (19.6 per watt in the bin)

4. RayDatabaseDetector

Stores complete phase-space information for every ray that hits the detector: position (x, y, z), direction cosines (L, M, N), flux, and wavelength. This enables post-trace analysis beyond what the other detectors support.

The RayDatabase.to_dataframe() method converts the data to a pandas DataFrame for convenient analysis.

scene_rdb = NSQScene()
scene_rdb.add_source(
    'S', CoordinateSystem(z=-80),
    CollimatedSourceConfig(spectrum=spec_green, total_flux=1.0, aperture_radius=10.0),
)
scene_rdb.add_lens('L', CoordinateSystem(z=0), DEMO_LENS)
scene_rdb.add_detector(
    'RDB', CoordinateSystem(z=FOCUS_Z),
    RayDatabaseConfig(width=4, height=4),
)

result_rdb = scene_rdb.trace(num_rays=50_000, seed=42)
db = result_rdb.detectors['RDB']

print(f"Rays stored: {db.num_rays:,}")
print(f"Total flux : {db.flux.sum():.4f} W")

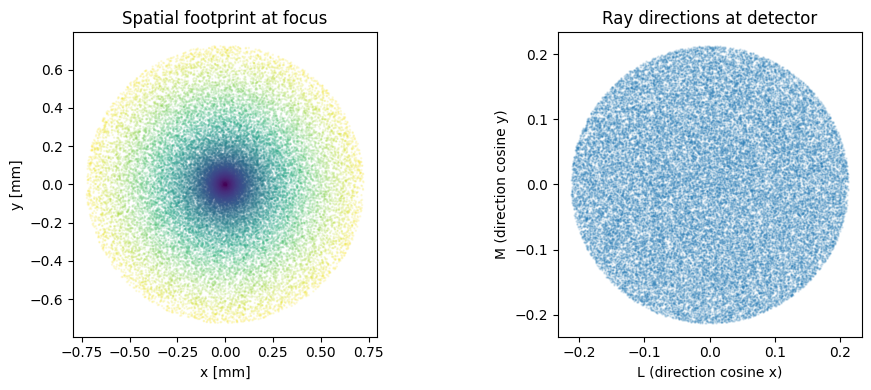

fig, axes = plt.subplots(1, 2, figsize=(10, 4))
axes[0].scatter(db.x, db.y, s=0.5, alpha=0.15, c=db.flux, cmap='viridis')
axes[0].set_xlabel('x [mm]'); axes[0].set_ylabel('y [mm]')
axes[0].set_title('Spatial footprint at focus')
axes[0].set_aspect('equal')

# Direction cosines: the converging cone maps to a filled disk whose radius is
# set by the marginal ray angle, i.e. by the f-number.
axes[1].scatter(db.L, db.M, s=0.5, alpha=0.15)
axes[1].set_xlabel('L (direction cosine x)'); axes[1].set_ylabel('M (direction cosine y)')
axes[1].set_title('Ray directions at detector')
axes[1].set_aspect('equal')

plt.tight_layout()
plt.show()
plt.close(fig)

Rays stored: 45,854
Total flux : 0.9165 W

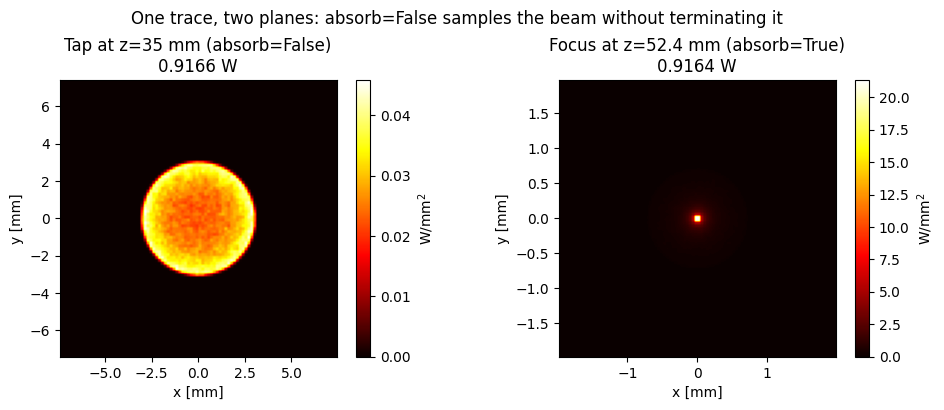

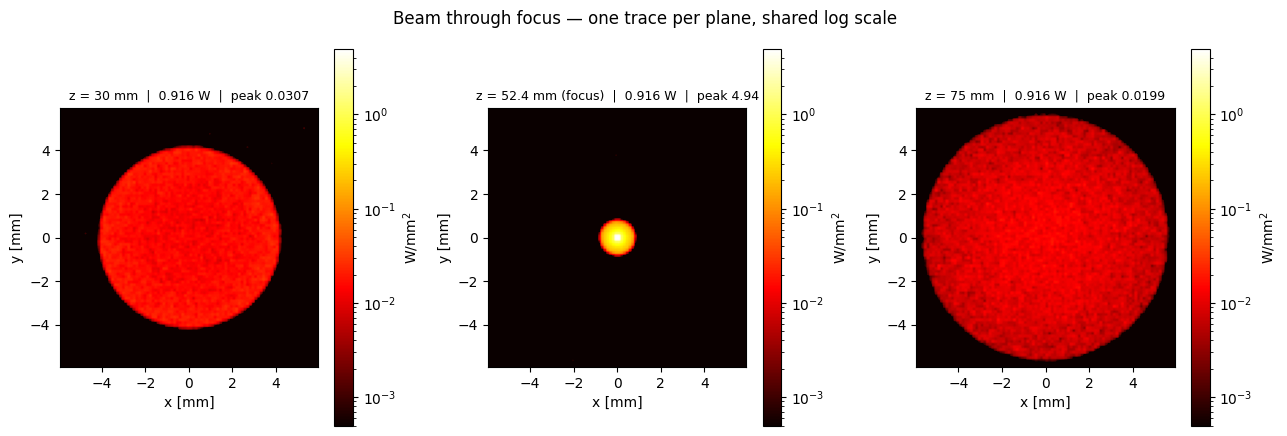

5. Multiple Detectors in One Scene

Detectors are absorbing: a ray that reaches one is recorded and then terminated. Several detectors can share a scene, and each accumulates independently, but only the first detector along a given ray’s path ever sees that ray.

That makes stacking detectors down a single beam the one thing detectors cannot do — the nearest plane would record everything and the rest would come back empty. Where multiple detectors do pay off is when they intercept different rays: a forward and a backward detector around a lens, a receiver plus a spill monitor, or one detector per output port of a splitter.

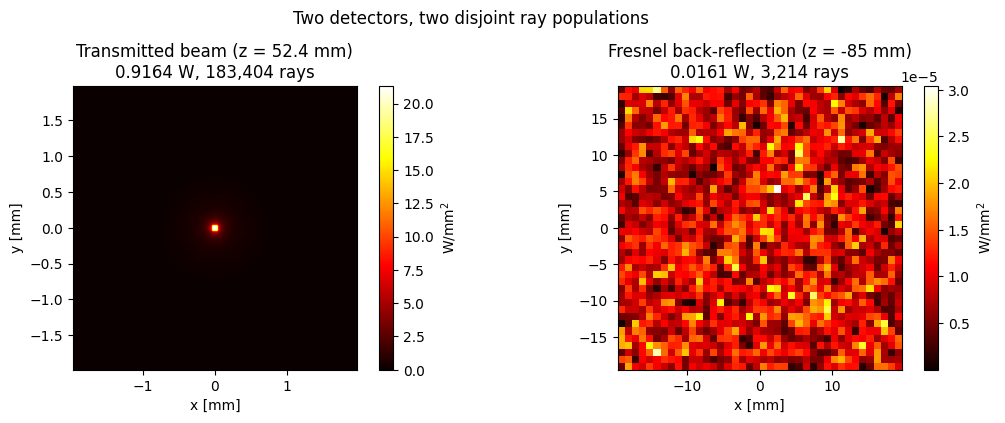

# Forward and backward detectors catch disjoint populations: the transmitted
# beam, and the Fresnel reflection travelling back towards the source.
scene_fb = NSQScene()
scene_fb.add_source(
    'S', CoordinateSystem(z=-80),
    CollimatedSourceConfig(spectrum=spec_green, total_flux=1.0, aperture_radius=10.0),
)
scene_fb.add_lens('L', CoordinateSystem(z=0), DEMO_LENS)
scene_fb.add_detector(
    'D_fwd', CoordinateSystem(z=FOCUS_Z),
    IrradianceDetectorConfig(width=4, height=4, num_pixels_x=96, num_pixels_y=96),
)
# Coarse bins: the back-reflection carries ~2% of the flux, so fine pixels
# would show mostly shot noise.
scene_fb.add_detector(
    'D_back', CoordinateSystem(z=-85),
    IrradianceDetectorConfig(width=40, height=40, num_pixels_x=40, num_pixels_y=40),
)

result_fb = scene_fb.trace(num_rays=200_000, seed=42)

fig, axes = plt.subplots(1, 2, figsize=(11, 4.2))
for ax, name, label in zip(axes, ['D_fwd', 'D_back'],
                           ['Transmitted beam (z = 52.4 mm)',
                            'Fresnel back-reflection (z = -85 mm)']):
    irr = result_fb.detectors[name]
    im = ax.imshow(irr.irradiance, origin='lower', cmap='hot', aspect='equal',
                   extent=[irr.x_coords[0], irr.x_coords[-1],
                           irr.y_coords[0], irr.y_coords[-1]])
    plt.colorbar(im, ax=ax, label='W/mm$^2$')
    ax.set_title(f'{label}\n{irr.total_flux:.4f} W, {irr.num_rays_hit:,} rays')
    ax.set_xlabel('x [mm]'); ax.set_ylabel('y [mm]')
plt.suptitle('Two detectors, two disjoint ray populations', fontsize=12)
plt.tight_layout()
plt.show()
plt.close(fig)

print(f"Forward : {result_fb.detectors['D_fwd'].total_flux:.4f} W")
print(f"Backward: {result_fb.detectors['D_back'].total_flux:.4f} W")
print(f"Escaped : {result_fb.total_flux_escaped:.4f} W")

Forward : 0.9164 W
Backward: 0.0161 W
Escaped : 0.0669 W

Profiling a beam at several planes

Because detectors absorb, a caustic scan is one trace per plane. The loop below walks a single detector through focus:

def beam_at(z, half_width=12.0, n_rays=60_000):
    """Trace the demo scene with a single detector at plane z."""
    s = NSQScene()
    s.add_source(
        'S', CoordinateSystem(z=-80),
        CollimatedSourceConfig(spectrum=spec_green, total_flux=1.0,
                               aperture_radius=10.0),
    )
    s.add_lens('L', CoordinateSystem(z=0), DEMO_LENS)
    s.add_detector(
        'D', CoordinateSystem(z=z),
        IrradianceDetectorConfig(width=half_width, height=half_width,
                                 num_pixels_x=96, num_pixels_y=96),
    )
    return s.trace(num_rays=n_rays, seed=42).detectors['D']


planes = [30.0, FOCUS_Z, 75.0]
maps = [beam_at(z) for z in planes]
vmax = max(m.irradiance.max() for m in maps)

# The focus is some 500x brighter than the planes either side of it, so a
# linear shared scale renders those two solid black. A shared log scale keeps
# the comparison honest and still shows the caustic.
from matplotlib.colors import LogNorm
norm = LogNorm(vmin=vmax * 1e-4, vmax=vmax)

# LogNorm masks the empty pixels rather than colouring them; paint them the
# floor colour so the unlit area reads as background instead of speckle.
cmap = plt.get_cmap('hot').copy()
cmap.set_bad(cmap(0.0))

fig, axes = plt.subplots(1, 3, figsize=(13, 4.4))
for ax, z, irr in zip(axes, planes, maps):
    im = ax.imshow(irr.irradiance, origin='lower', cmap=cmap, aspect='equal',
                   extent=[irr.x_coords[0], irr.x_coords[-1],
                           irr.y_coords[0], irr.y_coords[-1]],
                   norm=norm)
    plt.colorbar(im, ax=ax, label='W/mm$^2$')
    tag = ' (focus)' if abs(z - FOCUS_Z) < 1e-6 else ''
    ax.set_title(f'z = {z:g} mm{tag}  |  {irr.total_flux:.3f} W  |  '
                 f'peak {irr.irradiance.max():.3g}', fontsize=9)
    ax.set_xlabel('x [mm]'); ax.set_ylabel('y [mm]')
plt.suptitle('Beam through focus \u2014 one trace per plane, shared log scale',
             fontsize=12)
plt.tight_layout()
plt.show()
plt.close(fig)

6. Transmissive Detectors: absorb=False

Every detector config has an absorb field, default True: a ray that hits the detector is recorded and then terminated, which is why section 5 called detectors “absorbing” and needed one trace per plane to profile a beam.

Setting absorb=False makes the detector transmissive: the hit is still recorded, but the ray continues on its original, unchanged direction instead of stopping. That makes it possible to tap a beam mid-flight – sample it at an intermediate plane – without disturbing what happens downstream, so a single trace can record the same rays at two different planes at once. Below, a non-absorbing detector sits partway through the converging beam and an ordinary (absorbing) detector sits at focus; both see essentially the same flux, because the tap did not remove any rays.

scene_tap = NSQScene()
scene_tap.add_source(
    'S', CoordinateSystem(z=-80),
    CollimatedSourceConfig(spectrum=spec_green, total_flux=1.0, aperture_radius=10.0),
)
scene_tap.add_lens('L', CoordinateSystem(z=0), DEMO_LENS)
# z = 35: partway between the lens and the focus at z = 52.4. The beam is
# already converging but still ~9 mm across, well inside the 15 mm detector.
scene_tap.add_detector(
    'D_tap', CoordinateSystem(z=35),
    IrradianceDetectorConfig(width=15, height=15, num_pixels_x=96, num_pixels_y=96,
                             absorb=False),
)
scene_tap.add_detector(
    'D_focus', CoordinateSystem(z=FOCUS_Z),
    IrradianceDetectorConfig(width=4, height=4, num_pixels_x=96, num_pixels_y=96),
)

result_tap = scene_tap.trace(num_rays=200_000, seed=42)
tap, focus = result_tap.detectors['D_tap'], result_tap.detectors['D_focus']

print(f"Tap (absorb=False) at z=35    : {tap.total_flux:.4f} W, {tap.num_rays_hit:,} rays")
print(f"Focus (absorb=True) at z=52.4 : {focus.total_flux:.4f} W, {focus.num_rays_hit:,} rays")
print("Nearly identical flux -- the tap sampled the beam without removing it.")

fig, axes = plt.subplots(1, 2, figsize=(10, 4))
for ax, irr, title in zip(axes, [tap, focus],
                          ['Tap at z=35 mm (absorb=False)', 'Focus at z=52.4 mm (absorb=True)']):
    im = ax.imshow(irr.irradiance, origin='lower', cmap='hot', aspect='equal',
                   extent=[irr.x_coords[0], irr.x_coords[-1],
                           irr.y_coords[0], irr.y_coords[-1]])
    plt.colorbar(im, ax=ax, label='W/mm$^2$')
    ax.set_title(f'{title}\n{irr.total_flux:.4f} W')
    ax.set_xlabel('x [mm]'); ax.set_ylabel('y [mm]')
plt.suptitle('One trace, two planes: absorb=False samples the beam without terminating it', fontsize=12)
plt.tight_layout()
plt.show()

Tap (absorb=False) at z=35    : 0.9166 W, 183,435 rays
Focus (absorb=True) at z=52.4 : 0.9164 W, 183,404 rays
Nearly identical flux -- the tap sampled the beam without removing it.

7. Photometric Units

NSQ traces are radiometric throughout (watts, W/mm²); optiland.nonsequential.units is a read-only conversion layer on top of a finished result, not part of the trace loop. to_photometric() weights a detector’s spectral content against the CIE photopic luminous efficiency curve V(λ) to produce a photometric quantity – illuminance (lux) for a per-pixel map, or luminous flux (lumens) for a scalar total.

IrradianceMap carries no wavelength breakdown of its own (only SpectralResult does), so converting one requires an explicit wavelength_um – here the 0.55 µm the source used. Converting a spectrum with negligible overlap with V(λ) (e.g. purely infrared) raises rather than silently returning a near-zero photometric value.

from optiland.nonsequential import to_photometric

# irr_map is the 0.55 um focused-spot IrradianceMap from section 1.
photo = to_photometric(irr_map, quantity='illuminance', wavelength_um=0.55)

print(f"Radiometric peak    : {irr_map.irradiance.max():.3f} W/mm²")
print(f"Photometric peak    : {photo.data.max():.3e} lux")
print(f"Total luminous flux : {photo.total:.1f} lm  "
      f"(from {irr_map.total_flux:.4f} W radiometric at 0.55 µm)")
# The peak looks absurd next to everyday illuminance values (full sun is
# ~100,000 lux) only because this 1 W beam is focused into a sub-millimetre
# spot -- W/mm^2 is already a huge areal density before the lm/W conversion
# is even applied. The total luminous flux (lm), a spot-size-independent
# quantity, is the number to compare against real sources: 623 lm is in the
# same ballpark as a bright handheld flashlight.

fig = photo.plot(cmap='inferno')
plt.tight_layout()
plt.show()

Radiometric peak    : 31.167 W/mm²
Photometric peak    : 2.118e+10 lux
Total luminous flux : 622.8 lm  (from 0.9164 W radiometric at 0.55 µm)

Summary

• IrradianceDetector → IrradianceMap: 2D flux map, irradiance in W/mm²

• FarFieldDetector → FarFieldPattern: angular distribution, intensity in W/sr

• SpectralDetector → SpectralResult: per-wavelength 2D map; the binning range (wl_min/wl_max/num_bins) is in µm, like every other wavelength in Optiland

• RayDatabaseDetector → RayDatabase: full phase-space record; use .to_dataframe() for analysis

• splat controls how a ray’s flux lands in the pixel grid: bilinear (default, differentiable), hard (nearest-pixel, what the fast NumPy path uses), or gaussian (a true differentiable Gaussian kernel, width splat_sigma)

• Detectors absorb by default: only the first detector along a ray’s path records it, and one trace per plane is needed to profile a beam. Set absorb=False to record a hit without terminating the ray – useful for tapping a beam mid-flight

• optiland.nonsequential.units.to_photometric() converts a finished radiometric result (W, W/mm²) to a photometric one (lm, lux) by weighting against CIE V(λ); it is a read-only conversion layer, not part of the trace loop

• Put the detector where the light actually goes. This lens has f = 49.1 mm and a 47.4 mm back focal distance, so the focus is at z = 52.4 mm; a detector at z = 100 would measure a 7.5 mm defocus blur, not a spot
