Needle Synthesis for Thin Film Design

Automatically discover optimal thin-film stack configurations using the needle synthesis algorithm.

AdvancedCoatings & PolarizationNumPy backend15 min read

Introduction

This tutorial demonstrates the needle synthesis algorithm for discovering optimal thin film stack configurations, using real dispersive materials from the optiland catalog on N-BK7 glass.

Two design examples of increasing complexity:

Part 1 — Broadband AR coating: R < 1% across 420–680 nm, starting from a single MgF2 layer
Part 2 — Dichroic beamsplitter: R > 95% for 420–540 nm, T > 95% for 560–680 nm, starting from a (HL)³ quarter-wave stack

Reference: Tikhonravov & Trubetskov, Development of the needle optimization technique and new features of OptiLayer design software, SPIE Vol. 2253, 1994.

Core concepts used

NeedleSynthesis(stack, candidate_materials)

The core class for running the needle synthesis algorithm. It takes a starting stack and a list of materials it can use for insertions.

needle_thickness_nm=1.0

The thickness of the "needle" layer inserted at each trial position.

ns.add_spectral_target('R', wavelengths, 'equal', 0.0)

Defines the performance targets for the synthesis process.

result.stack

The final, optimized ThinFilmStack found by the algorithm.

Step-by-step build

Import Required Modules

python

import numpy as np
import matplotlib.pyplot as plt
from optiland.materials import Material, IdealMaterial
from optiland.thin_film import ThinFilmStack, SpectralAnalyzer
from optiland.thin_film.optimization import NeedleSynthesis
from optiland.thin_film.optimization.operand.thin_film import ThinFilmOperand

Part 1: Broadband AR Coating (R < 1%)

Define materials and starting design

We use real dispersive materials from the optiland catalog:

Material	Role	n @ 550 nm	Reference
N-BK7	Substrate	1.519	Schott
SiO2	Low-index layer	1.460	Malitson
TiO2	High-index layer	2.648	Devore
MgF2	Very low-index layer	1.379	Dodge
Al2O3	Mid-index layer	1.770	Malitson

We start from a single MgF2 quarter-wave layer — the simplest possible AR coating. A single low-index layer on N-BK7 gives roughly 1.4% reflectance, which already violates our < 1% spec at the band edges.

python

# Incident medium
air = IdealMaterial(n=1.0)

# Substrate
nbk7 = Material("N-BK7")

# Candidate coating materials (dispersive)
sio2 = Material("SiO2", reference="Malitson")
tio2 = Material("TiO2", reference="Devore-o")
mgf2 = Material("MgF2", reference="Dodge-o")
al2o3 = Material("Al2O3", reference="Malitson")

# Print refractive indices at 550 nm
for name, mat in [("N-BK7", nbk7), ("SiO2", sio2), ("TiO2", tio2),
                ("MgF2", mgf2), ("Al2O3", al2o3)]:
 print(f"{name:6s}  n(550nm) = {np.asarray(mat.n(0.55)).item():.4f}")

# Starting design: single MgF2 layer
stack = ThinFilmStack(incident_material=air, substrate_material=nbk7)
stack.add_layer_nm(mgf2, 100.0, name="MgF2")
print("\nStarting design:")
print(stack)

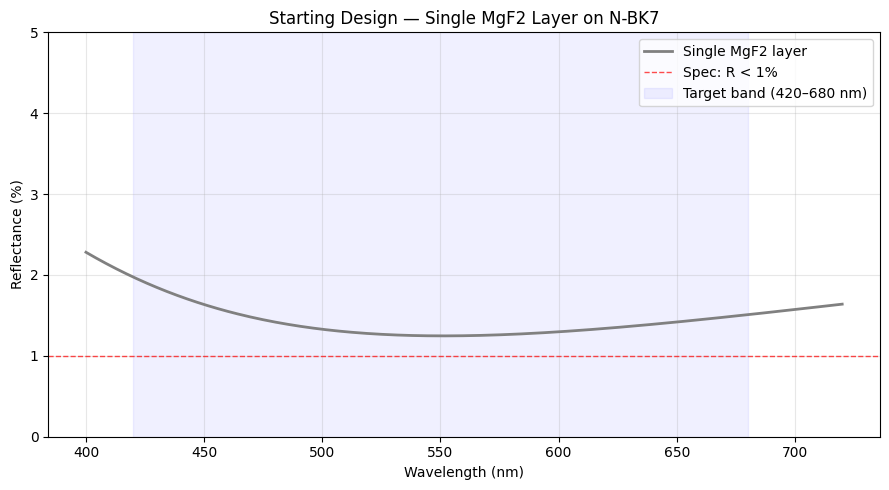

Starting performance

The single MgF2 layer gives ~1.4% average reflectance. The 1% spec line (dashed red) shows the design fails across most of the band.

python

wl_plot = np.linspace(400, 720, 300)
R_start = np.array([ThinFilmOperand.reflectance(stack, wl) for wl in wl_plot])

fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(wl_plot, R_start * 100, "-", color="gray",
     linewidth=2, label="Single MgF2 layer")
ax.axhline(1.0, color="red", linestyle="--",
        linewidth=1, alpha=0.7, label="Spec: R < 1%")
ax.axvspan(420, 680, alpha=0.06, color="blue", label="Target band (420–680 nm)")
ax.set_xlabel("Wavelength (nm)")
ax.set_ylabel("Reflectance (%)")
ax.set_title("Starting Design — Single MgF2 Layer on N-BK7")
ax.set_ylim(0, 5)
ax.legend(loc="upper right")
ax.grid(True, alpha=0.3)
fig.tight_layout();

Configure needle synthesis

The algorithm will:

Screen trial needle insertions at sampled positions within every layer
Try all four candidate materials at each position
Insert the needle that reduces the merit function the most
Re-optimize all layer thicknesses after each insertion
Repeat until no further improvement is found

We target R = 0 at 30 wavelengths across 420–680 nm, driving the optimizer to push reflectance as low as possible everywhere.

python

ns = NeedleSynthesis(
 stack=stack,
 candidate_materials=[sio2, tio2, mgf2, al2o3],
 needle_thickness_nm=1.0,
 min_thickness_nm=2.0,
 max_iterations=12,
 num_positions_per_layer=8,
 optimizer_max_iter=200,
)

# Dense broadband target: minimize R across 420-680 nm
wavelengths = np.linspace(420, 680, 30).tolist()
ns.add_spectral_target("R", wavelengths, "equal", 0.0)

Run needle synthesis

The verbose output shows each iteration: which material was inserted, the needle thickness, and how the merit function evolves.

python

result = ns.run(verbose=True)

Results summary

python

print(f"Success:       {result.success}")
print(f"Iterations:    {result.num_iterations}")
print(f"Layers added:  {result.num_layers_added}")
print(f"Initial merit: {result.initial_merit:.6e}")
print(f"Final merit:   {result.final_merit:.6e}")
print(f"Improvement:   {(1 - result.final_merit / result.initial_merit) * 100:.1f}%")
print(f"\nFinal stack:")
print(result.stack)

# Check against spec: R < 1% everywhere in 420-680 nm
wl_check = np.linspace(420, 680, 100)
R_vals = np.array([ThinFilmOperand.reflectance(result.stack, wl) for wl in wl_check])
print(f"\nAverage R (420-680 nm): {np.mean(R_vals)*100:.3f}%")
print(f"Peak R (420-680 nm):   {np.max(R_vals)*100:.3f}%")
print(f"R < 1% across full band: {np.all(R_vals < 0.01)}")

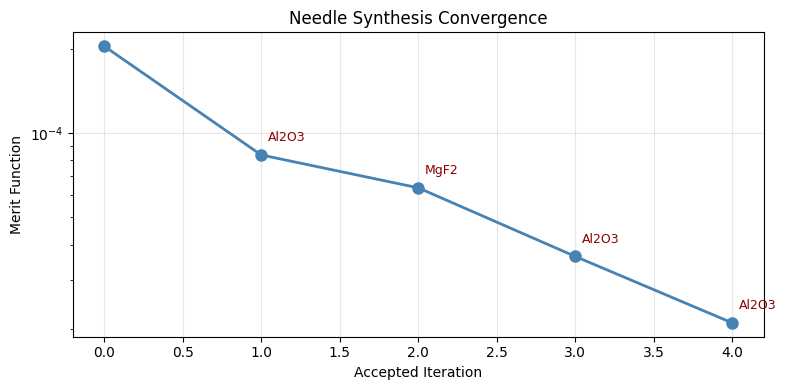

Merit function convergence

Each accepted needle insertion reduces the merit function. The rollback mechanism ensures rejected insertions (those that worsen performance after re-optimization) are never kept.

python

merits = [result.initial_merit] + [h.merit_after for h in result.history]
materials_used = [h.material_name for h in result.history]

fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(range(len(merits)), merits, "o-", color="steelblue", linewidth=2, markersize=8)

# Annotate each insertion with material name
for i, (m, name) in enumerate(zip(merits[1:], materials_used), 1):
 ax.annotate(name, (i, m), textcoords="offset points",
             xytext=(5, 10), fontsize=9, color="darkred")

ax.set_xlabel("Accepted Iteration")
ax.set_ylabel("Merit Function")
ax.set_title("Needle Synthesis Convergence")
ax.set_yscale("log")
ax.grid(True, alpha=0.3)
fig.tight_layout();

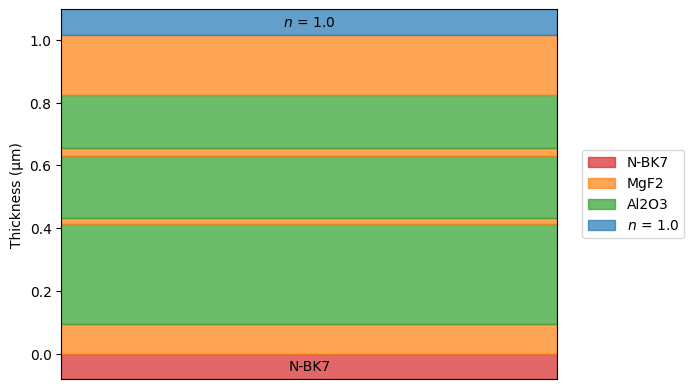

Final stack structure

The algorithm autonomously selected which materials to use and determined the optimal layer thicknesses.

python

fig, ax = result.stack.plot_structure()

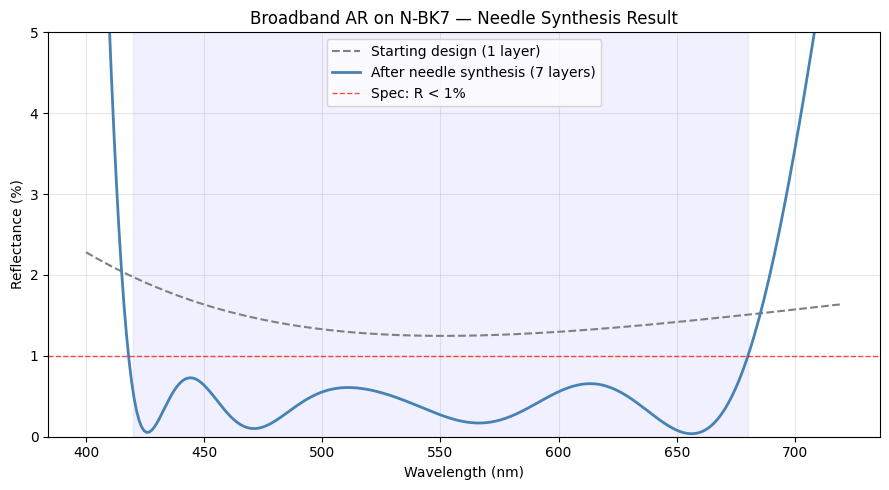

Before vs. after comparison

The final design meets the stringent R < 1% spec across the entire 420–680 nm band — something impossible with a single-layer coating on N-BK7.

python

# Rebuild starting design for comparison
stack_initial = ThinFilmStack(incident_material=air, substrate_material=nbk7)
stack_initial.add_layer_nm(mgf2, 100.0, name="MgF2")

wl_eval = np.linspace(400, 720, 300)
R_initial = np.array([
 ThinFilmOperand.reflectance(stack_initial, wl) for wl in wl_eval
])
R_final = np.array([ThinFilmOperand.reflectance(result.stack, wl) for wl in wl_eval])

fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(wl_eval, R_initial * 100, "--", color="gray",
     linewidth=1.5, label="Starting design (1 layer)")
ax.plot(wl_eval, R_final * 100, "-", color="steelblue",
     linewidth=2,
     label=f"After needle synthesis ({len(result.stack.layers)} layers)")
ax.axhline(1.0, color="red", linestyle="--",
        linewidth=1, alpha=0.7, label="Spec: R < 1%")
ax.axvspan(420, 680, alpha=0.06, color="blue")
ax.set_xlabel("Wavelength (nm)")
ax.set_ylabel("Reflectance (%)")
ax.set_title("Broadband AR on N-BK7 — Needle Synthesis Result")
ax.set_ylim(0, 5)
ax.legend()
ax.grid(True, alpha=0.3)
fig.tight_layout();

Part 2: Dichroic Beamsplitter

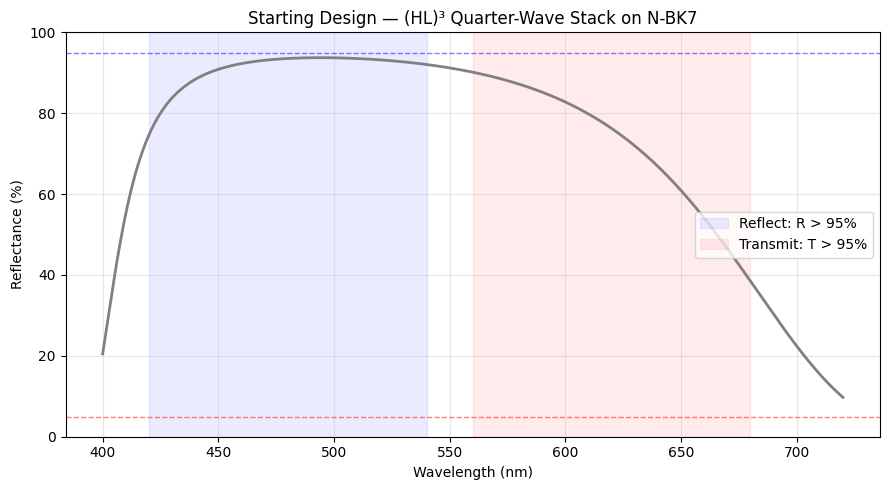

Starting design: (HL)³ quarter-wave stack

We start from a simple 6-layer TiO2/SiO2 quarter-wave stack tuned to 500 nm. This gives some initial reflectance in the blue but is far from meeting spec.

python

# (HL)^3 quarter-wave stack at 500 nm
# QW optical thickness: n*d = 500/4 = 125 nm
# TiO2 (n~2.65): d = 125/2.65 ~ 47 nm
# SiO2 (n~1.46): d = 125/1.46 ~ 86 nm
stack_d = ThinFilmStack(incident_material=air, substrate_material=nbk7)
for _ in range(3):
 stack_d.add_layer_nm(tio2, 47.0, name="TiO2")
 stack_d.add_layer_nm(sio2, 86.0, name="SiO2")
print(stack_d)

# Plot starting performance
wl_plot = np.linspace(400, 720, 300)
R_start_d = np.array([ThinFilmOperand.reflectance(stack_d, wl) for wl in wl_plot])

fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(wl_plot, R_start_d * 100, "-", color="gray", linewidth=2)
ax.axvspan(420, 540, alpha=0.08, color="blue", label="Reflect: R > 95%")
ax.axvspan(560, 680, alpha=0.08, color="red", label="Transmit: T > 95%")
ax.axhline(95, color="blue", linestyle="--", linewidth=1, alpha=0.5)
ax.axhline(5, color="red", linestyle="--", linewidth=1, alpha=0.5)
ax.set_xlabel("Wavelength (nm)")
ax.set_ylabel("Reflectance (%)")
ax.set_title("Starting Design — (HL)³ Quarter-Wave Stack on N-BK7")
ax.set_ylim(0, 100)
ax.legend(loc="center right")
ax.grid(True, alpha=0.3)
fig.tight_layout();

Run needle synthesis for the dichroic

python

ns_d = NeedleSynthesis(
 stack=stack_d,
 candidate_materials=[sio2, tio2, mgf2, al2o3],
 needle_thickness_nm=1.0,
 min_thickness_nm=2.0,
 max_iterations=8,
 num_positions_per_layer=3,
 optimizer_max_iter=80,
)

# Reflection band: R → 1 for 420-540 nm
wl_reflect = np.linspace(420, 540, 10).tolist()
ns_d.add_spectral_target("R", wl_reflect, "equal", 1.0)

# Transmission band: R → 0 for 560-680 nm
wl_transmit = np.linspace(560, 680, 10).tolist()
ns_d.add_spectral_target("R", wl_transmit, "equal", 0.0)

result_d = ns_d.run(verbose=True)

Dichroic results summary

python

print(f"Success:       {result_d.success}")
print(f"Layers added:  {result_d.num_layers_added}")
print(f"Initial merit: {result_d.initial_merit:.6e}")
print(f"Final merit:   {result_d.final_merit:.6e}")
improvement_pct = (1 - result_d.final_merit / result_d.initial_merit) * 100
print(f"Improvement:   {improvement_pct:.1f}%")
print(f"\nFinal stack ({len(result_d.stack.layers)} layers):")
print(result_d.stack)

# Check against specs
wl_r = np.linspace(420, 540, 50)
wl_t = np.linspace(560, 680, 50)
R_reflect = np.array([ThinFilmOperand.reflectance(result_d.stack, wl) for wl in wl_r])
R_transmit = np.array([ThinFilmOperand.reflectance(result_d.stack, wl) for wl in wl_t])
print(f"\nReflection band (420-540 nm):")
print(f"  Average R: {np.mean(R_reflect)*100:.1f}%")
print(f"  Min R:     {np.min(R_reflect)*100:.1f}%")
print(f"\nTransmission band (560-680 nm):")
print(f"  Average T: {(1-np.mean(R_transmit))*100:.1f}%")
print(f"  Min T:     {(1-np.max(R_transmit))*100:.1f}%")

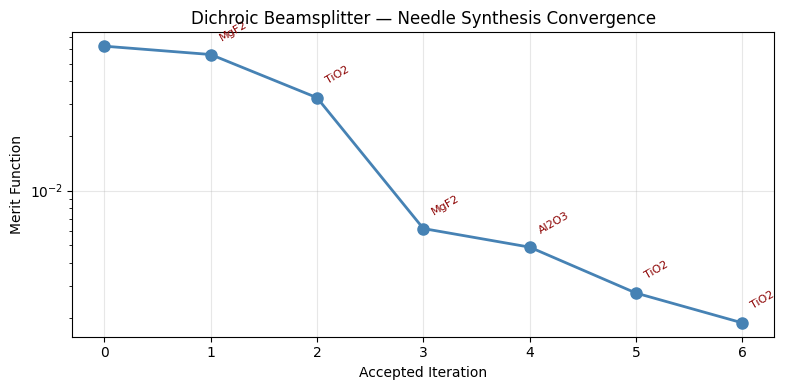

Dichroic convergence analysis

python

merits_d = [result_d.initial_merit] + [h.merit_after for h in result_d.history]
materials_d = [h.material_name for h in result_d.history]

fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(
 range(len(merits_d)), merits_d,
 "o-", color="steelblue", linewidth=2, markersize=8
)

for i, (m, name) in enumerate(zip(merits_d[1:], materials_d), 1):
 ax.annotate(name, (i, m), textcoords="offset points",
             xytext=(5, 10), fontsize=8, color="darkred", rotation=30)

ax.set_xlabel("Accepted Iteration")
ax.set_ylabel("Merit Function")
ax.set_title("Dichroic Beamsplitter — Needle Synthesis Convergence")
ax.set_yscale("log")
ax.grid(True, alpha=0.3)
fig.tight_layout();

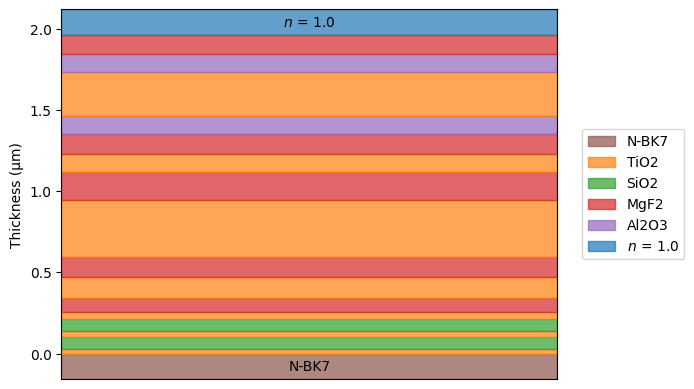

Optimized stack structure

python

fig, ax = result_d.stack.plot_structure()

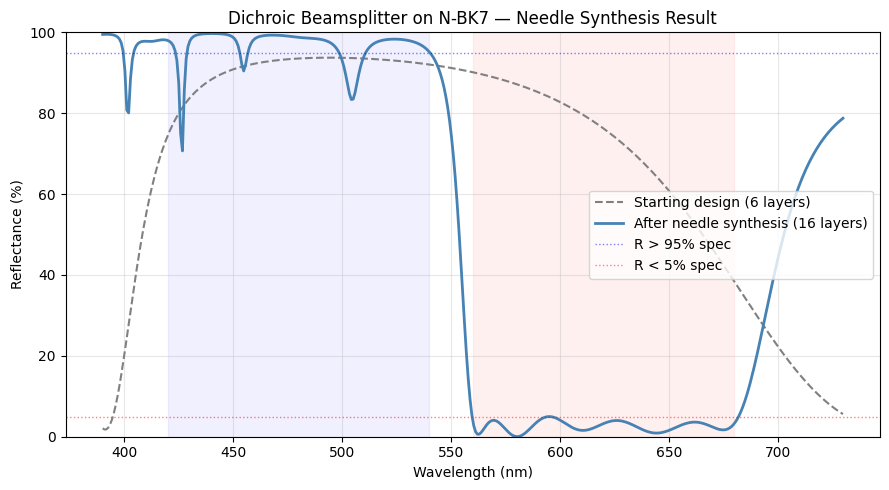

Final spectral performance

The final comparison shows the starting (HL)³ stack vs. the optimized dichroic. The algorithm built a sharp transition edge at 550 nm using all four candidate materials.

python

# Rebuild starting design for comparison
stack_d_initial = ThinFilmStack(incident_material=air, substrate_material=nbk7)
for _ in range(3):
 stack_d_initial.add_layer_nm(tio2, 47.0, name="TiO2")
 stack_d_initial.add_layer_nm(sio2, 86.0, name="SiO2")

wl_eval = np.linspace(390, 730, 400)
R_d_initial = np.array([
 ThinFilmOperand.reflectance(stack_d_initial, wl) for wl in wl_eval
])
R_d_final = np.array([
 ThinFilmOperand.reflectance(result_d.stack, wl) for wl in wl_eval
])

fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(wl_eval, R_d_initial * 100, "--", color="gray",
     linewidth=1.5, label="Starting design (6 layers)")
ax.plot(wl_eval, R_d_final * 100, "-", color="steelblue",
     linewidth=2,
     label=f"After needle synthesis ({len(result_d.stack.layers)} layers)")
ax.axvspan(420, 540, alpha=0.06, color="blue")
ax.axvspan(560, 680, alpha=0.06, color="red")
ax.axhline(95, color="blue", linestyle=":",
        linewidth=1, alpha=0.5, label="R > 95% spec")
ax.axhline(5, color="red", linestyle=":", linewidth=1, alpha=0.5, label="R < 5% spec")
ax.set_xlabel("Wavelength (nm)")
ax.set_ylabel("Reflectance (%)")
ax.set_title("Dichroic Beamsplitter on N-BK7 — Needle Synthesis Result")
ax.set_ylim(0, 100)
ax.legend(loc="center right")
ax.grid(True, alpha=0.3)
fig.tight_layout();

Show full code listing

python

import numpy as np
import matplotlib.pyplot as plt
from optiland.materials import Material, IdealMaterial
from optiland.thin_film import ThinFilmStack, SpectralAnalyzer
from optiland.thin_film.optimization import NeedleSynthesis
from optiland.thin_film.optimization.operand.thin_film import ThinFilmOperand

# Incident medium
air = IdealMaterial(n=1.0)

# Substrate
nbk7 = Material("N-BK7")

# Candidate coating materials (dispersive)
sio2 = Material("SiO2", reference="Malitson")
tio2 = Material("TiO2", reference="Devore-o")
mgf2 = Material("MgF2", reference="Dodge-o")
al2o3 = Material("Al2O3", reference="Malitson")

# Print refractive indices at 550 nm
for name, mat in [("N-BK7", nbk7), ("SiO2", sio2), ("TiO2", tio2),
                 ("MgF2", mgf2), ("Al2O3", al2o3)]:
  print(f"{name:6s}  n(550nm) = {np.asarray(mat.n(0.55)).item():.4f}")

# Starting design: single MgF2 layer
stack = ThinFilmStack(incident_material=air, substrate_material=nbk7)
stack.add_layer_nm(mgf2, 100.0, name="MgF2")
print("\nStarting design:")
print(stack)

wl_plot = np.linspace(400, 720, 300)
R_start = np.array([ThinFilmOperand.reflectance(stack, wl) for wl in wl_plot])

fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(wl_plot, R_start * 100, "-", color="gray",
      linewidth=2, label="Single MgF2 layer")
ax.axhline(1.0, color="red", linestyle="--",
         linewidth=1, alpha=0.7, label="Spec: R < 1%")
ax.axvspan(420, 680, alpha=0.06, color="blue", label="Target band (420–680 nm)")
ax.set_xlabel("Wavelength (nm)")
ax.set_ylabel("Reflectance (%)")
ax.set_title("Starting Design — Single MgF2 Layer on N-BK7")
ax.set_ylim(0, 5)
ax.legend(loc="upper right")
ax.grid(True, alpha=0.3)
fig.tight_layout();

ns = NeedleSynthesis(
  stack=stack,
  candidate_materials=[sio2, tio2, mgf2, al2o3],
  needle_thickness_nm=1.0,
  min_thickness_nm=2.0,
  max_iterations=12,
  num_positions_per_layer=8,
  optimizer_max_iter=200,
)

# Dense broadband target: minimize R across 420-680 nm
wavelengths = np.linspace(420, 680, 30).tolist()
ns.add_spectral_target("R", wavelengths, "equal", 0.0)

result = ns.run(verbose=True)

print(f"Success:       {result.success}")
print(f"Iterations:    {result.num_iterations}")
print(f"Layers added:  {result.num_layers_added}")
print(f"Initial merit: {result.initial_merit:.6e}")
print(f"Final merit:   {result.final_merit:.6e}")
print(f"Improvement:   {(1 - result.final_merit / result.initial_merit) * 100:.1f}%")
print(f"\nFinal stack:")
print(result.stack)

# Check against spec: R < 1% everywhere in 420-680 nm
wl_check = np.linspace(420, 680, 100)
R_vals = np.array([ThinFilmOperand.reflectance(result.stack, wl) for wl in wl_check])
print(f"\nAverage R (420-680 nm): {np.mean(R_vals)*100:.3f}%")
print(f"Peak R (420-680 nm):   {np.max(R_vals)*100:.3f}%")
print(f"R < 1% across full band: {np.all(R_vals < 0.01)}")

merits = [result.initial_merit] + [h.merit_after for h in result.history]
materials_used = [h.material_name for h in result.history]

fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(range(len(merits)), merits, "o-", color="steelblue", linewidth=2, markersize=8)

# Annotate each insertion with material name
for i, (m, name) in enumerate(zip(merits[1:], materials_used), 1):
  ax.annotate(name, (i, m), textcoords="offset points",
              xytext=(5, 10), fontsize=9, color="darkred")

ax.set_xlabel("Accepted Iteration")
ax.set_ylabel("Merit Function")
ax.set_title("Needle Synthesis Convergence")
ax.set_yscale("log")
ax.grid(True, alpha=0.3)
fig.tight_layout();

fig, ax = result.stack.plot_structure()

# Rebuild starting design for comparison
stack_initial = ThinFilmStack(incident_material=air, substrate_material=nbk7)
stack_initial.add_layer_nm(mgf2, 100.0, name="MgF2")

wl_eval = np.linspace(400, 720, 300)
R_initial = np.array([
  ThinFilmOperand.reflectance(stack_initial, wl) for wl in wl_eval
])
R_final = np.array([ThinFilmOperand.reflectance(result.stack, wl) for wl in wl_eval])

fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(wl_eval, R_initial * 100, "--", color="gray",
      linewidth=1.5, label="Starting design (1 layer)")
ax.plot(wl_eval, R_final * 100, "-", color="steelblue",
      linewidth=2,
      label=f"After needle synthesis ({len(result.stack.layers)} layers)")
ax.axhline(1.0, color="red", linestyle="--",
         linewidth=1, alpha=0.7, label="Spec: R < 1%")
ax.axvspan(420, 680, alpha=0.06, color="blue")
ax.set_xlabel("Wavelength (nm)")
ax.set_ylabel("Reflectance (%)")
ax.set_title("Broadband AR on N-BK7 — Needle Synthesis Result")
ax.set_ylim(0, 5)
ax.legend()
ax.grid(True, alpha=0.3)
fig.tight_layout();

# (HL)^3 quarter-wave stack at 500 nm
# QW optical thickness: n*d = 500/4 = 125 nm
# TiO2 (n~2.65): d = 125/2.65 ~ 47 nm
# SiO2 (n~1.46): d = 125/1.46 ~ 86 nm
stack_d = ThinFilmStack(incident_material=air, substrate_material=nbk7)
for _ in range(3):
  stack_d.add_layer_nm(tio2, 47.0, name="TiO2")
  stack_d.add_layer_nm(sio2, 86.0, name="SiO2")
print(stack_d)

# Plot starting performance
wl_plot = np.linspace(400, 720, 300)
R_start_d = np.array([ThinFilmOperand.reflectance(stack_d, wl) for wl in wl_plot])

fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(wl_plot, R_start_d * 100, "-", color="gray", linewidth=2)
ax.axvspan(420, 540, alpha=0.08, color="blue", label="Reflect: R > 95%")
ax.axvspan(560, 680, alpha=0.08, color="red", label="Transmit: T > 95%")
ax.axhline(95, color="blue", linestyle="--", linewidth=1, alpha=0.5)
ax.axhline(5, color="red", linestyle="--", linewidth=1, alpha=0.5)
ax.set_xlabel("Wavelength (nm)")
ax.set_ylabel("Reflectance (%)")
ax.set_title("Starting Design — (HL)³ Quarter-Wave Stack on N-BK7")
ax.set_ylim(0, 100)
ax.legend(loc="center right")
ax.grid(True, alpha=0.3)
fig.tight_layout();

ns_d = NeedleSynthesis(
  stack=stack_d,
  candidate_materials=[sio2, tio2, mgf2, al2o3],
  needle_thickness_nm=1.0,
  min_thickness_nm=2.0,
  max_iterations=8,
  num_positions_per_layer=3,
  optimizer_max_iter=80,
)

# Reflection band: R → 1 for 420-540 nm
wl_reflect = np.linspace(420, 540, 10).tolist()
ns_d.add_spectral_target("R", wl_reflect, "equal", 1.0)

# Transmission band: R → 0 for 560-680 nm
wl_transmit = np.linspace(560, 680, 10).tolist()
ns_d.add_spectral_target("R", wl_transmit, "equal", 0.0)

result_d = ns_d.run(verbose=True)

print(f"Success:       {result_d.success}")
print(f"Layers added:  {result_d.num_layers_added}")
print(f"Initial merit: {result_d.initial_merit:.6e}")
print(f"Final merit:   {result_d.final_merit:.6e}")
improvement_pct = (1 - result_d.final_merit / result_d.initial_merit) * 100
print(f"Improvement:   {improvement_pct:.1f}%")
print(f"\nFinal stack ({len(result_d.stack.layers)} layers):")
print(result_d.stack)

# Check against specs
wl_r = np.linspace(420, 540, 50)
wl_t = np.linspace(560, 680, 50)
R_reflect = np.array([ThinFilmOperand.reflectance(result_d.stack, wl) for wl in wl_r])
R_transmit = np.array([ThinFilmOperand.reflectance(result_d.stack, wl) for wl in wl_t])
print(f"\nReflection band (420-540 nm):")
print(f"  Average R: {np.mean(R_reflect)*100:.1f}%")
print(f"  Min R:     {np.min(R_reflect)*100:.1f}%")
print(f"\nTransmission band (560-680 nm):")
print(f"  Average T: {(1-np.mean(R_transmit))*100:.1f}%")
print(f"  Min T:     {(1-np.max(R_transmit))*100:.1f}%")

merits_d = [result_d.initial_merit] + [h.merit_after for h in result_d.history]
materials_d = [h.material_name for h in result_d.history]

fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(
  range(len(merits_d)), merits_d,
  "o-", color="steelblue", linewidth=2, markersize=8
)

for i, (m, name) in enumerate(zip(merits_d[1:], materials_d), 1):
  ax.annotate(name, (i, m), textcoords="offset points",
              xytext=(5, 10), fontsize=8, color="darkred", rotation=30)

ax.set_xlabel("Accepted Iteration")
ax.set_ylabel("Merit Function")
ax.set_title("Dichroic Beamsplitter — Needle Synthesis Convergence")
ax.set_yscale("log")
ax.grid(True, alpha=0.3)
fig.tight_layout();

fig, ax = result_d.stack.plot_structure()

# Rebuild starting design for comparison
stack_d_initial = ThinFilmStack(incident_material=air, substrate_material=nbk7)
for _ in range(3):
  stack_d_initial.add_layer_nm(tio2, 47.0, name="TiO2")
  stack_d_initial.add_layer_nm(sio2, 86.0, name="SiO2")

wl_eval = np.linspace(390, 730, 400)
R_d_initial = np.array([
  ThinFilmOperand.reflectance(stack_d_initial, wl) for wl in wl_eval
])
R_d_final = np.array([
  ThinFilmOperand.reflectance(result_d.stack, wl) for wl in wl_eval
])

fig, ax = plt.subplots(figsize=(9, 5))
ax.plot(wl_eval, R_d_initial * 100, "--", color="gray",
      linewidth=1.5, label="Starting design (6 layers)")
ax.plot(wl_eval, R_d_final * 100, "-", color="steelblue",
      linewidth=2,
      label=f"After needle synthesis ({len(result_d.stack.layers)} layers)")
ax.axvspan(420, 540, alpha=0.06, color="blue")
ax.axvspan(560, 680, alpha=0.06, color="red")
ax.axhline(95, color="blue", linestyle=":",
         linewidth=1, alpha=0.5, label="R > 95% spec")
ax.axhline(5, color="red", linestyle=":", linewidth=1, alpha=0.5, label="R < 5% spec")
ax.set_xlabel("Wavelength (nm)")
ax.set_ylabel("Reflectance (%)")
ax.set_title("Dichroic Beamsplitter on N-BK7 — Needle Synthesis Result")
ax.set_ylim(0, 100)
ax.legend(loc="center right")
ax.grid(True, alpha=0.3)
fig.tight_layout();

Conclusions

The needle synthesis algorithm automatically grows a multilayer stack by inserting thin "needle" layers one at a time, selecting the material and position that most reduces the merit function at each iteration — removing the need to specify the number of layers in advance.
Starting from a single MgF2 quarter-wave layer, the algorithm reached the stringent R < 1% broadband AR specification across 420–680 nm on N-BK7, a target that is impossible to meet with any single-layer design.
For the much harder dichroic beamsplitter problem, the algorithm built a sharp 550 nm transition edge from a 6-layer quarter-wave seed, autonomously selecting from four candidate materials (SiO2, TiO2, MgF2, Al2O3) to simultaneously satisfy R > 95% and T > 95% specs in separate spectral bands.
Logging the merit function after each accepted insertion produces a convergence history that reveals which materials the algorithm preferred and how quickly the design improved, providing interpretable insight into the layer-growth process.
The NeedleSynthesis class integrates seamlessly with the ThinFilmStack ecosystem: the result.stack output is a standard stack object that can be passed directly to SpectralAnalyzer, plotted with plot_structure, or handed to ThinFilmOptimizer for further refinement.

Next tutorials

NextThin Film Tolerance AnalysisAnalyze how manufacturing variations affect your thin-film performance.RelatedDichroic Mirror OptimizationLearn more about optimizing thin-films for polarization separation.

Original notebook: Tutorial_6h_Needle_Synthesis.ipynb on GitHub · ReadTheDocs
