Tutorial 1e: Design a Doublet, End to End#

Last verified against Optiland v0.6.1.

Every other tutorial teaches one part of Optiland. This one carries a single design all the way through, so you can see how the parts connect:

requirements → first-order layout → a working design → analysis → optimization → tolerancing → prescription

The design is an achromatic doublet — the simplest lens worth designing properly. If you have worked through Tutorial 1a and Tutorial 1b, you have everything you need. If a convention here surprises you, the Conventions page is the place to check.

1. Requirements#

Every design starts as a specification. Ours:

Requirement

Value

Effective focal length

100 mm

Entrance pupil diameter

20 mm (so f/5)

Half field of view

±2°

Waveband

visible: F (0.4861 µm), d (0.5876 µm), C (0.6563 µm)

Goal

diffraction-limited-ish on axis, small chromatic blur across the band

Two numbers matter before anything else: the Airy radius at f/5 in the visible is about 1.22 λ·(f/#) ≈ 3.6 µm, and the detector pixel we are notionally aiming at is around 5 µm. So an RMS spot radius in the single-digit microns is “good”, and anything tens of microns is not.

[1]:
import matplotlib.pyplot as plt
import numpy as np

from optiland.analysis import RayFan, RmsSpotSizeVsField, SpotDiagram
from optiland.diagnostics import check_system
from optiland.optic import Optic

WAVELENGTHS = (0.4861, 0.5876, 0.6563)  # F, d, C
EPD = 20.0
HALF_FOV = 2.0


def apply_system_spec(lens: Optic) -> Optic:
    """Apply the aperture, fields and wavelengths from the requirements."""
    lens.set_aperture(aperture_type="EPD", value=EPD)
    lens.fields.set_type("angle")
    for y in (0.0, 0.7 * HALF_FOV, HALF_FOV):
        lens.fields.add(y=y)
    for value in WAVELENGTHS:
        lens.wavelengths.add(value=value, is_primary=(value == 0.5876))
    return lens


def rms_by_field(lens: Optic) -> list[float]:
    """Polychromatic RMS spot radius per field, in microns."""
    spot = SpotDiagram(lens)
    return [
        1000.0 * float(np.mean([float(w) for w in field]))
        for field in spot.rms_spot_radius()
    ]

2. First-order layout: a singlet#

Before choosing glass or worrying about aberrations, get the first-order system right: a single positive element with the required focal length and aperture. This is the honest starting point — and it is also a useful baseline to measure against.

A plano-convex N-BK7 singlet with R₁ ≈ 51.7 mm gives roughly 100 mm of focal length.

[2]:
singlet = Optic(name="f/5 Singlet (baseline)")
singlet.surfaces.add(index=0, thickness=np.inf)                                   # object
singlet.surfaces.add(index=1, radius=51.68, thickness=8.0,
                     material="N-BK7", is_stop=True)                              # front
singlet.surfaces.add(index=2, radius=np.inf, thickness=95.0)                      # back
singlet.surfaces.add(index=3)                                                     # image
apply_system_spec(singlet)

# Before tracing anything, check the system is fully specified.
check_system(singlet)
[2]:

DiagnosticReport: no issues found.

check_system reports no errors, so the system is complete. Place the image plane at the paraxial focus with image_solve(), then look at it.

[3]:
singlet.updater.image_solve()
print(f"EFL:  {float(singlet.paraxial.f2()):.2f} mm")
print(f"f/#:  {float(singlet.paraxial.FNO()):.2f}")

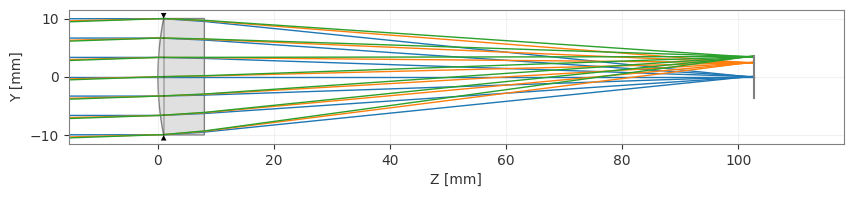

singlet.draw(num_rays=7)
EFL:  100.00 mm
f/#:  5.00
[3]:
(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_8_2.png
[4]:
print("Singlet RMS spot radius by field (um):")
for y, r in zip((0.0, 1.4, 2.0), rms_by_field(singlet)):
    print(f"  {y:4.1f} deg : {r:7.2f}")
Singlet RMS spot radius by field (um):
   0.0 deg :   84.36
   1.4 deg :   90.19
   2.0 deg :   96.38

Around 85 µm on axis — more than twenty times the Airy radius. The layout meets the first-order requirement and fails the image-quality requirement completely. Look at the spot diagram to see why.

[5]:

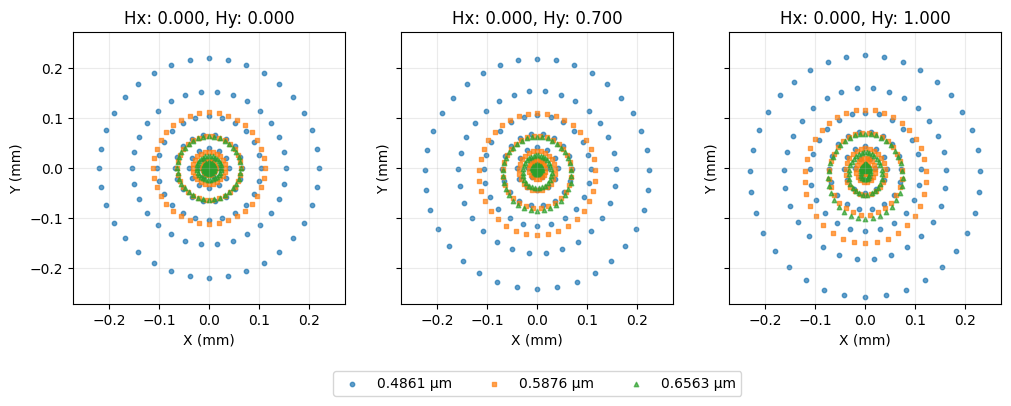

SpotDiagram(singlet).view()
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_11_0.png
[5]:
(<Figure size 1200x400 with 3 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='X (mm)', ylabel='Y (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.700'}, xlabel='X (mm)', ylabel='Y (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='X (mm)', ylabel='Y (mm)'>])

The three wavelengths land on three different focal planes: this is axial chromatic aberration, and no amount of bending a single element will remove it. That is the problem an achromatic doublet exists to solve.

3. A real starting point: the cemented doublet#

An achromat cements a positive crown element to a negative flint element. The two glasses have different dispersions, so the combination can be made to focus F and C light at the same place while keeping net positive power.

We use N-BK7 (crown) and N-SF5 (flint). Three radii define the shape: the front of the crown, the cemented interface, and the back of the flint.

Note the “after” rule at work — surface 1 carries material="N-BK7" because the crown glass lies after surface 1; surface 2 carries material="N-SF5" for the flint; and surface 3 needs no material because air is the default.

[6]:
def build_doublet(r1=61.0, r2=-44.0, r3=-129.0, back=95.0) -> Optic:
    lens = Optic(name="Achromatic Doublet, f/5, EFL 100 mm")
    lens.surfaces.add(index=0, thickness=np.inf)                                  # object
    lens.surfaces.add(index=1, radius=r1, thickness=8.0,
                      material="N-BK7", is_stop=True)                             # crown
    lens.surfaces.add(index=2, radius=r2, thickness=3.0, material="N-SF5")        # cement
    lens.surfaces.add(index=3, radius=r3, thickness=back)                         # flint back
    lens.surfaces.add(index=4)                                                    # image
    return apply_system_spec(lens)


lens = build_doublet()
lens.updater.image_solve()
print(f"EFL:  {float(lens.paraxial.f2()):.2f} mm")
print(f"f/#:  {float(lens.paraxial.FNO()):.2f}")

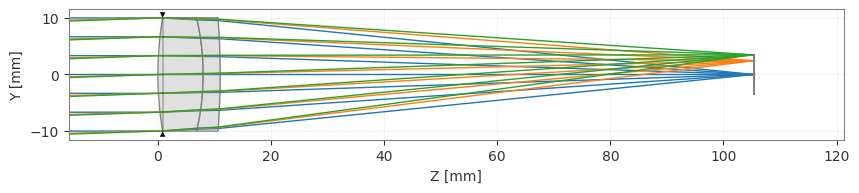

lens.draw(num_rays=7)
EFL:  99.79 mm
f/#:  4.99
[6]:
(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_14_2.png
[7]:
print("Doublet RMS spot radius by field (um):")
for y, r in zip((0.0, 1.4, 2.0), rms_by_field(lens)):
    print(f"  {y:4.1f} deg : {r:7.2f}")
Doublet RMS spot radius by field (um):
   0.0 deg :    2.39
   1.4 deg :    8.10
   2.0 deg :   14.53

On axis the RMS spot radius drops from ~85 µm to a couple of microns — comparable to the Airy radius. The full field is still worse, which is what the rest of the design work is about.

[8]:

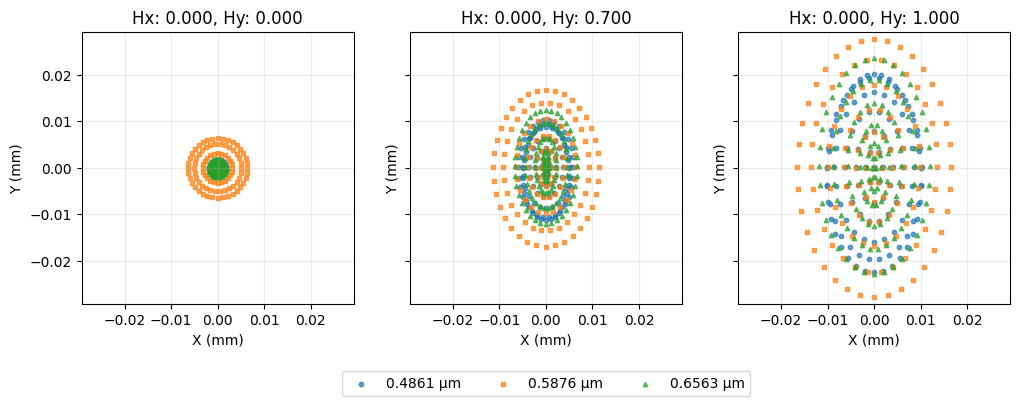

SpotDiagram(lens).view()
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_17_0.png
[8]:
(<Figure size 1200x400 with 3 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='X (mm)', ylabel='Y (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.700'}, xlabel='X (mm)', ylabel='Y (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='X (mm)', ylabel='Y (mm)'>])

4. Analysis: where is the remaining error?#

A spot diagram tells you how big the blur is. A ray fan tells you what kind of aberration it is: the shape of the curve identifies the aberration, and its spread across wavelengths identifies the chromatic content.

[9]:

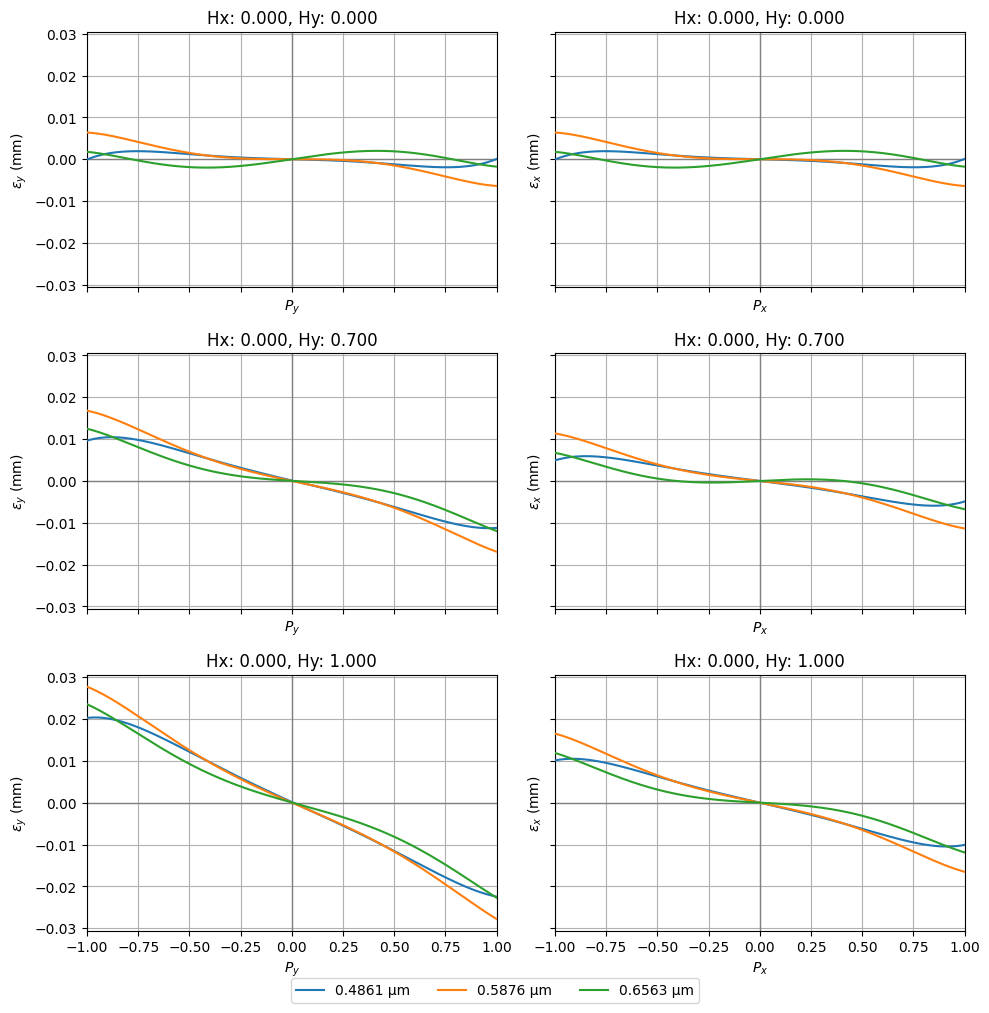

RayFan(lens).view()
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_19_0.png
[9]:
(<Figure size 1000x999 with 6 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='$P_y$', ylabel='$\\epsilon_y$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='$P_x$', ylabel='$\\epsilon_x$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.700'}, xlabel='$P_y$', ylabel='$\\epsilon_y$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.700'}, xlabel='$P_x$', ylabel='$\\epsilon_x$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='$P_y$', ylabel='$\\epsilon_y$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='$P_x$', ylabel='$\\epsilon_x$ (mm)'>])

The on-axis curve is nearly flat with a slight S-shape — residual spherical aberration and a small secondary spectrum. The off-axis curves tilt and separate: coma and field curvature, both growing with field angle. That matches what the spot diagram showed.

RmsSpotSizeVsField makes the field dependence explicit:

[10]:

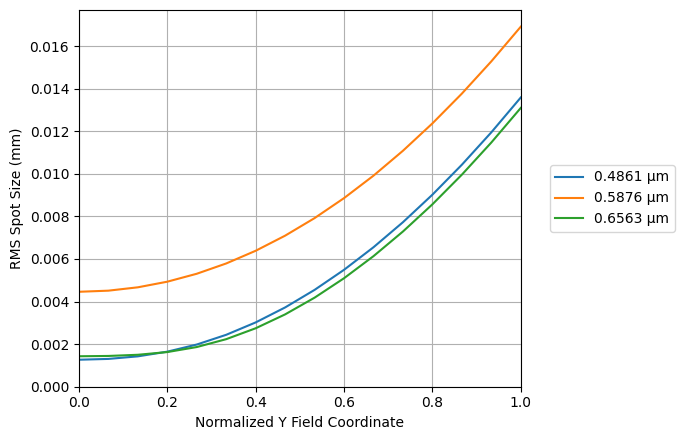

RmsSpotSizeVsField(lens, num_fields=16).view()
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_21_0.png
[10]:
(<Figure size 700x450 with 1 Axes>,
 <Axes: xlabel='Normalized Y Field Coordinate', ylabel='RMS Spot Size (mm)'>)

5. Optimization#

We have three free radii and one hard constraint (EFL = 100 mm). Optimization in Optiland is always the same three steps:

  1. declare variables — what may change,

  2. declare operands — what “good” means, as targets,

  3. hand the problem to an optimizer.

The EFL operand gets a heavy weight because it is a requirement, not a preference. The spot-size operands are targeted at zero across three fields and three wavelengths.

[11]:
from optiland.optimization import OptimizationProblem, OptimizerGeneric

problem = OptimizationProblem()

# 1. Variables: the three radii.
for surface_number in (1, 2, 3):
    problem.add_variable(lens, "radius", surface_number=surface_number)

# 2. Operands: hold the focal length, minimize the polychromatic spot.
problem.add_operand("f2", target=100.0, weight=10.0, input_data={"optic": lens})
for Hy in (0.0, 0.7, 1.0):
    for wavelength in WAVELENGTHS:
        problem.add_operand(
            "rms_spot_size",
            target=0.0,
            weight=1.0,
            input_data={
                "optic": lens,
                "Hx": 0.0,
                "Hy": Hy,
                "num_rings": 6,
                "wavelength": wavelength,
                "surface_number": -1,  # the image surface
            },
        )

print(f"Merit function before: {float(problem.sum_squared()):.6f}")
Merit function before: 4.520587
[12]:
OptimizerGeneric(problem).optimize(maxiter=200)
lens.updater.image_solve()  # optimization moved the focus; refocus the image plane

print(f"Merit function after:  {float(problem.sum_squared()):.6f}")
print(f"EFL: {float(lens.paraxial.f2()):.3f} mm")
print("Radii:", [round(float(lens.surfaces.radii[i]), 3) for i in (1, 2, 3)])
Merit function after:  0.000679
EFL: 100.000 mm
Radii: [61.112, -43.937, -129.032]
[13]:
print("Optimized RMS spot radius by field (um):")
for y, r in zip((0.0, 1.4, 2.0), rms_by_field(lens)):
    print(f"  {y:4.1f} deg : {r:7.2f}")
Optimized RMS spot radius by field (um):
   0.0 deg :    2.04
   1.4 deg :    7.40
   2.0 deg :   13.84

The EFL is now exactly on target and the spot is smaller at every field. The gain is modest — a cemented doublet with a fixed glass pair has very few degrees of freedom, and the starting point was already close. That is a real result, not a failure of the optimizer: knowing when a form is exhausted is part of design. To do better you would change the form — split the element, add an air space, or change the glass pair (see Tutorial 3e).

[14]:

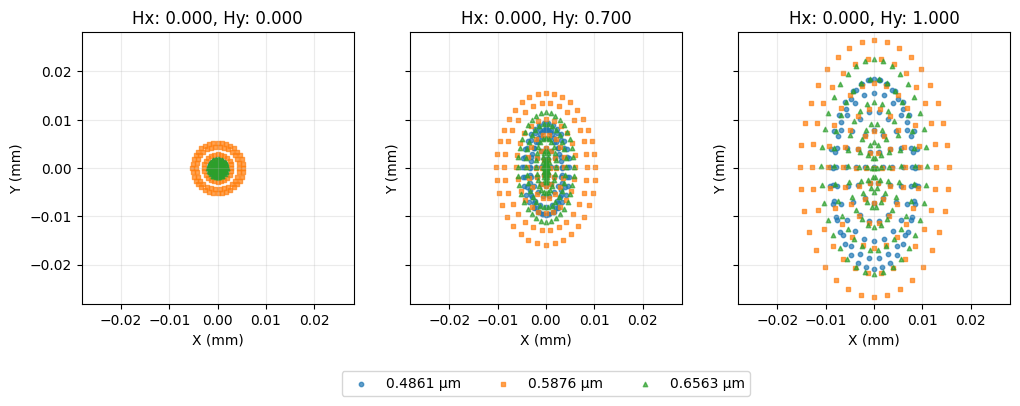

SpotDiagram(lens).view()
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_27_0.png
[14]:
(<Figure size 1200x400 with 3 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='X (mm)', ylabel='Y (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.700'}, xlabel='X (mm)', ylabel='Y (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='X (mm)', ylabel='Y (mm)'>])

6. Tolerancing: will it survive manufacturing?#

A design that only works at its nominal prescription is not a design. Tolerancing asks: how much does performance degrade when the radii, thicknesses and alignments land within realistic manufacturing bands?

Start with sensitivity — vary one parameter at a time and watch a performance metric. This tells you which parameters need tight tolerances and which do not.

[15]:
from optiland.tolerancing import RangeSampler, SensitivityAnalysis, Tolerancing

tolerancing = Tolerancing(lens)

r1 = float(lens.surfaces.radii[1])
tolerancing.add_perturbation(
    "radius", RangeSampler(start=r1 - 0.5, end=r1 + 0.5, steps=21), surface_number=1
)
tolerancing.add_perturbation(
    "thickness", RangeSampler(start=7.9, end=8.1, steps=21), surface_number=1
)
tolerancing.add_perturbation(
    "tilt", RangeSampler(start=-0.002, end=0.002, steps=21), surface_number=1, axis="x"
)

tolerancing.add_operand("f2", {"optic": lens})
tolerancing.add_operand(
    "rms_spot_size",
    {
        "optic": lens,
        "surface_number": -1,
        "Hx": 0.0,
        "Hy": 0.0,
        "wavelength": 0.5876,
        "num_rays": 6,
    },
    target=0.0,
)

sensitivity = SensitivityAnalysis(tolerancing)
sensitivity.run()

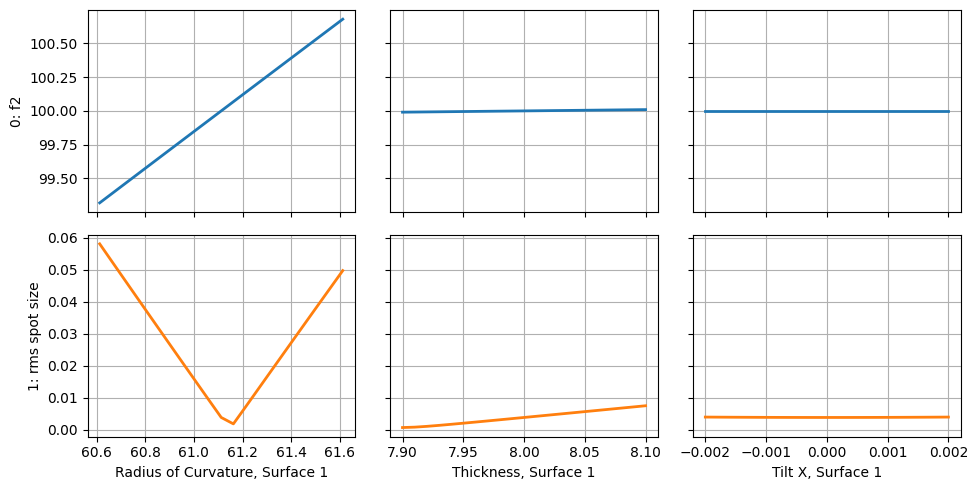

sensitivity.view()
[15]:
(<Figure size 990x500 with 6 Axes>,
 [<Axes: ylabel='0: f2'>,
  <Axes: >,
  <Axes: >,
  <Axes: xlabel='Radius of Curvature, Surface 1', ylabel='1: rms spot size'>,
  <Axes: xlabel='Thickness, Surface 1'>,
  <Axes: xlabel='Tilt X, Surface 1'>])
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_29_1.png

Now a Monte Carlo run: perturb everything simultaneously from realistic distributions and look at the resulting spread. This is the number you quote to a manufacturer.

[16]:
from optiland.tolerancing.monte_carlo import MonteCarlo
from optiland.tolerancing.perturbation import DistributionSampler

mc_tolerancing = Tolerancing(lens)

for surface_number in (1, 2, 3):
    # Radius: 0.1% of nominal, 1-sigma
    nominal = float(lens.surfaces.radii[surface_number])
    mc_tolerancing.add_perturbation(
        "radius",
        DistributionSampler("normal", loc=nominal, scale=abs(nominal) * 0.001),
        surface_number=surface_number,
    )
    # Element tilt: 1 arcmin, 1-sigma (radians)
    for axis in ("x", "y"):
        mc_tolerancing.add_perturbation(
            "tilt",
            DistributionSampler("normal", loc=0.0, scale=0.0003),
            surface_number=surface_number,
            axis=axis,
        )

mc_tolerancing.add_operand(
    "rms_spot_size",
    {
        "optic": lens,
        "surface_number": -1,
        "Hx": 0.0,
        "Hy": 0.0,
        "wavelength": 0.5876,
        "num_rays": 6,
    },
    target=0.0,
)

mc = MonteCarlo(mc_tolerancing)
mc.run(num_iterations=100)

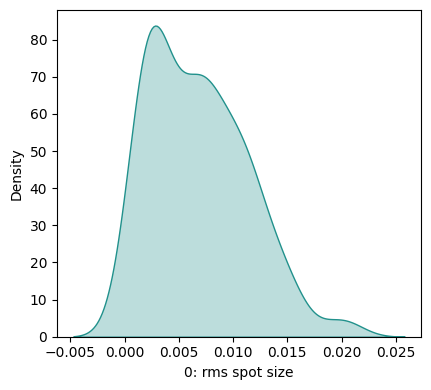

mc.view_histogram()
[16]:
(<Figure size 1200x400 with 1 Axes>,
 array([<Axes: xlabel='0: rms spot size', ylabel='Density'>, <Axes: >,
        <Axes: >], dtype=object))
../_images/examples_Tutorial_1e_Design_a_Doublet_End_to_End_31_1.png
[17]:
results = mc.get_results()
results.describe()
[17]:
Radius of Curvature, Surface 1 Tilt X, Surface 1 Tilt Y, Surface 1 Radius of Curvature, Surface 2 Tilt X, Surface 2 Tilt Y, Surface 2 Radius of Curvature, Surface 3 Tilt X, Surface 3 Tilt Y, Surface 3 0: rms spot size
count 100.000000 100.000000 100.000000 100.000000 100.000000 100.000000 100.000000 100.000000 100.000000 100.000000
mean 61.119423 0.000050 0.000030 -43.935201 0.000061 -0.000022 -129.031451 -0.000035 0.000005 0.006800
std 0.047746 0.000293 0.000276 0.047804 0.000278 0.000294 0.125461 0.000305 0.000318 0.004475
min 61.015920 -0.000759 -0.000729 -44.035582 -0.000612 -0.001040 -129.372587 -0.000714 -0.000749 0.000640
25% 61.088062 -0.000137 -0.000154 -43.969531 -0.000102 -0.000187 -129.110373 -0.000241 -0.000198 0.002742
50% 61.117092 0.000051 0.000020 -43.936814 0.000074 -0.000039 -129.032931 -0.000028 0.000010 0.006527
75% 61.156181 0.000272 0.000240 -43.904015 0.000236 0.000161 -128.946334 0.000194 0.000212 0.009839
max 61.226683 0.000666 0.000741 -43.799970 0.000862 0.000729 -128.716980 0.000831 0.000781 0.020465

The distribution — not its mean — is the deliverable. If the 90th percentile of RMS spot radius is still inside your budget, the design is manufacturable at these tolerances. If not, tighten the parameter the sensitivity analysis flagged as worst, and rerun.

7. The prescription#

Finally, produce the document you would hand to a colleague or a vendor: every surface, every material, the first-order properties, and the residual aberrations.

[18]:
from optiland.prescription import Prescription

Prescription(lens).view()
╭─────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
Optical Prescription — Achromatic Doublet, f/5, EFL 100 mm
╰──────────────────────────────────────── Generated: 2026-08-02 10:34 UTC ────────────────────────────────────────╯
───────────────────────────────────────────────── System Overview ─────────────────────────────────────────────────
  Name              Achromatic Doublet, f/5, EFL 100 mm
  Surfaces          3
  Stop Surface      1.0000
  Aperture Type     EPDAperture
  Aperture Value    20.0000
  Object Distance
  Image Distance    94.6311

 Wavelengths
  #   Wavelength (µm)   Primary
 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  1   0.4861
  2   0.5876
  3   0.6563

 Fields
  #   Type         X        Y        Weight
 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  1   AngleField   0.0000   0.0000   1.0000
  2   AngleField   0.0000   1.4000   1.0000
  3   AngleField   0.0000   2.0000   1.0000

───────────────────────────────────────────── First-Order Properties ──────────────────────────────────────────────
  Effective Focal Length (EFL)   99.9518
  Front Focal Length (FFL)       -99.9518
  Back Focal Length (BFL)        -0.0457
  Front Principal Plane (P1)     1.8334
  Back Principal Plane (P2)      -99.9975
  Front Nodal Plane (N1)         1.8334
  Back Nodal Plane (N2)          -99.9975
  Image-Space F/#                4.9976
  Entrance Pupil Diameter        20.0000
  Entrance Pupil Location        0.0000
  Exit Pupil Diameter            20.3737
  Exit Pupil Location            -101.8651
  Transverse Magnification       -0.0000
  Lagrange Invariant             -0.3492

───────────────────────────────────────────── Surface Data — Geometry ─────────────────────────────────────────────
  S#   Type       Radius (mm)   Thickness (mm)   Conic    Stop   Comment
 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  0    Plane      ∞             ∞                —
  1    standard   61.1165       8.0000           0.0000
  2    standard   -43.9737      3.0000           0.0000
  3    standard   -128.9639     94.6311          0.0000
  4    standard   ∞             0.0000           —

──────────────────────────────────────────── Surface Data — Materials ─────────────────────────────────────────────
  S#   Material   nd       Vd        Semi-Diameter (mm)   Coating
 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  0    Air        1.0000   —         —                    —
  1    N-BK7      1.5168   64.1673
  2    N-SF5      1.6727   32.2512   —                    —
  3    Air        1.0000
  4    Air        1.0000   —         —                    —

───────────────────────────────────────── Seidel Aberration Coefficients ──────────────────────────────────────────
  S#      SI (Sph)    SII (Coma)   SIII (Astig)   SIV (Petz)   SV (Dist)   CL (LCA)    CT (TCA)
 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  1       -0.009840   -0.002100    -0.000448      -0.000680    -0.000241   -0.017383   -0.003710
  2       0.030537    -0.002107    0.000145       0.000170     -0.000022   0.059326    -0.004093
  3       -0.023319   0.004351     -0.000812      -0.000380    0.000222    -0.041340   0.007713
  Total   -0.002623   0.000144     -0.001115      -0.000890    -0.000040   0.000603    -0.000089

What you just did#

You took a written requirement, laid it out to first order, discovered the first-order solution was not good enough, changed the form to fix the dominant aberration, measured what was left, optimized within that form, established what tolerances the design can survive, and produced a prescription. That loop is the whole job; every other tutorial in this documentation deepens one step of it.

Where to go next#
