Ghost Analysis with Multi-Sequence Tracing

A ghost is a stray image formed when light partially reflects off two surfaces instead of refracting through them normally. Optiland models this with multi-sequence tracing: a sub-sequence traces the same surface objects as the main system, just in a different order, with an interaction override ("reflect") at the bounce points.

This means the ghost sequence is never a separate, disconnected copy of the lens. Geometry and materials are shared by reference with the base Optic, so editing a surface (or optimizing it) is immediately visible in both the nominal system and every ghost sequence built over it.

from optiland.analysis import SpotDiagram
from optiland.samples.objectives import CookeTriplet

lens = CookeTriplet()

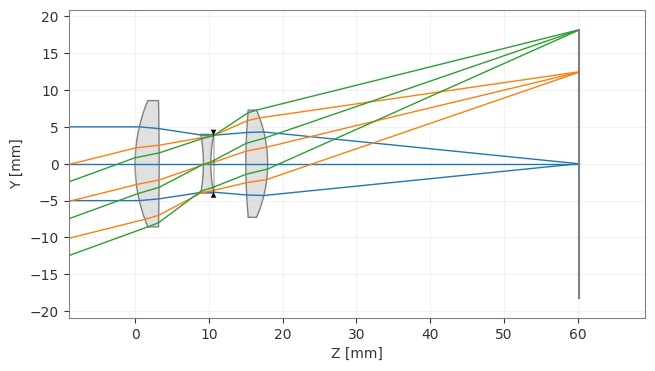

lens.draw()

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

Defining the ghost sequence

Optic.add_sequence takes a list of steps. A bare surface index means “forward, normal refraction/reflection”. An (index, "reflect") pair forces a reflection at that surface instead. The direction of travel (forward/reverse) is inferred automatically: it starts forward and flips every time the sequence reflects, since that is the point where the physical direction of propagation actually reverses.

Here we trace a classic two-bounce ghost: light refracts normally through surfaces 1 and 2, partially reflects off surface 3, travels back to partially reflect off surface 2, then continues forward through 3 to the image plane.

ghost = lens.add_sequence(
    "ghost_2_3",
    steps=[0, 1, 2, (3, "reflect"), (2, "reflect"), 3, 4, 5, 6, 7],
)
ghost

SequencedOptic(name='ghost_2_3', base_optic=<optiland.samples.objectives.CookeTriplet object at 0x0000026A110999D0>, steps=10)

Sequences are validated at construction time: if the interaction at any step would leave the ray in a medium that does not match what the next step expects, add_sequence raises immediately rather than silently tracing something unphysical.

Tracing the ghost

Rays for the ghost sequence are generated exactly as they would be for the nominal system (same aperture stop, same conjugates, same ray aiming); only the path they take through the surfaces differs. Existing analyses like SpotDiagram work against a sequence the same way they work against an Optic, since a sequence exposes the same trace, trace_generic, and surfaces interface.

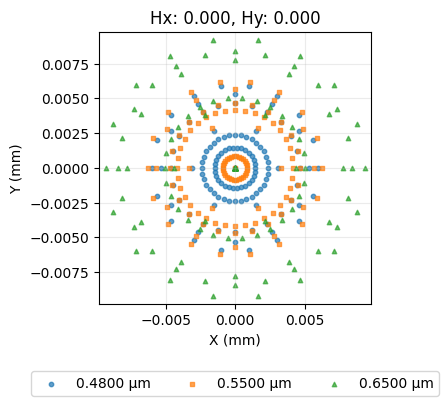

nominal_spot = SpotDiagram(lens, fields=[(0, 0)])
nominal_spot.view()

(<Figure size 1200x400 with 1 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='X (mm)', ylabel='Y (mm)'>])

ghost_spot = SpotDiagram(ghost, fields=[(0, 0)])
ghost_spot.view()

(<Figure size 1200x400 with 1 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='X (mm)', ylabel='Y (mm)'>])

The ghost spot lands in the same field of view as the real image, but is far larger and more diffuse, exactly the signature of a ghost image: a faint, out-of-focus blob rather than a sharp point. We can compare the two quantitatively with the RMS spot radius:

nominal_rms = nominal_spot.rms_spot_radius()[0][0]
ghost_rms = ghost_spot.rms_spot_radius()[0][0]

print(f"Nominal image RMS spot radius: {nominal_rms:.4f} mm")
print(f"Ghost RMS spot radius:         {ghost_rms:.4f} mm")
print(f"Ghost is {ghost_rms / nominal_rms:.0f}x larger")

Nominal image RMS spot radius: 0.0038 mm
Ghost RMS spot radius:         17.4720 mm
Ghost is 4608x larger

The base system and the ghost stay linked

Because SurfaceView shares geometry with the base surfaces by reference, changing a base surface’s radius updates the ghost trace too, without redefining the sequence.

original_radius = lens.surfaces.surfaces[2].geometry.radius
lens.surfaces.surfaces[2].geometry.radius = original_radius * 1.05

ghost_spot_after = SpotDiagram(ghost, fields=[(0, 0)])
print(f"Ghost RMS spot radius before edit: {ghost_rms:.4f} mm")
print(f"Ghost RMS spot radius after edit:  {ghost_spot_after.rms_spot_radius()[0][0]:.4f} mm")

lens.surfaces.surfaces[2].geometry.radius = original_radius

Ghost RMS spot radius before edit: 17.4720 mm
Ghost RMS spot radius after edit:  17.4683 mm

Optimizing with the ghost in the loop

Since a sequence exposes the same trace-based interface as an Optic, ray operands like rms_spot_size work against it directly. That means a merit function can mix operands over the nominal system and a ghost sequence in the same OptimizationProblem, for example to keep the nominal image sharp while also constraining how tightly a ghost focuses.

from optiland.optimization import OptimizationProblem

problem = OptimizationProblem()
problem.add_operand(
    "rms_spot_size",
    target=0.0,
    weight=1.0,
    input_data={
        "optic": lens,
        "surface_number": -1,
        "Hx": 0.0,
        "Hy": 0.0,
        "num_rays": 20,
        "wavelength": 0.55,
    },
)
problem.add_operand(
    "rms_spot_size",
    min_val=0.5,
    weight=0.1,
    input_data={
        "optic": ghost,
        "surface_number": -1,
        "Hx": 0.0,
        "Hy": 0.0,
        "num_rays": 20,
        "wavelength": 0.55,
        "nan_policy": "omit",
    },
)
problem.operand_info()

╒════╤════════════════╤══════════╤══════════════╤══════════════╤══════════╤═══════════════╤═════════╤═════════╤════════════════╕
│    │ Operand Type   │ Target   │ Min. Bound   │ Max. Bound   │   Weight │   Eff. Weight │   Value │   Delta │   Contrib. [%] │
╞════╪════════════════╪══════════╪══════════════╪══════════════╪══════════╪═══════════════╪═════════╪═════════╪════════════════╡
│  0 │ rms spot size  │ +0.000   │              │              │      1   │           1   │   0.004 │   0.004 │            100 │
│  1 │ rms spot size  │          │ 0.5          │              │      0.1 │           0.1 │  16.558 │   0     │              0 │
╘════╧════════════════╧══════════╧══════════════╧══════════════╧══════════╧═══════════════╧═════════╧═════════╧════════════════╛

The second operand sets min_val=0.5, an inequality constraint asking the optimizer to keep the ghost spread over at least 0.5 mm, i.e. to keep it diffuse rather than letting it accidentally focus into a sharp secondary image. This is the kind of constraint that is only possible once the ghost path is a first-class part of the merit function, alongside the nominal image quality.
